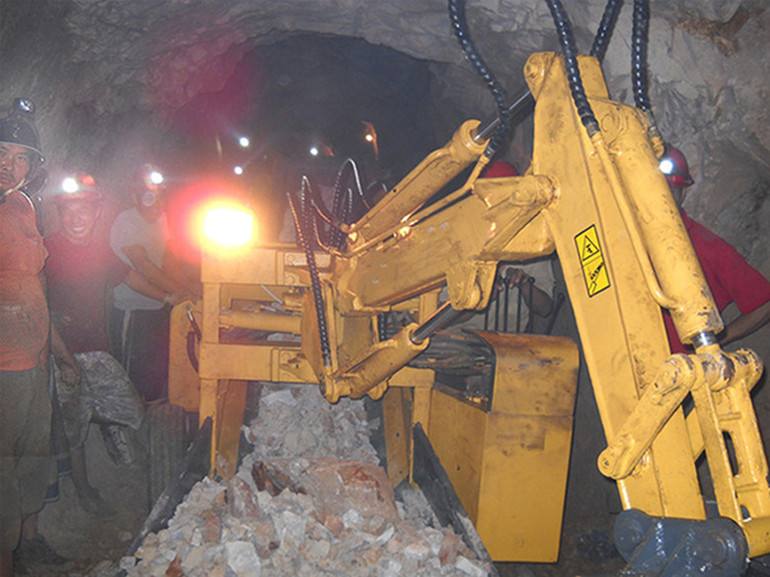

The mucking rock loader changed the semi-mechanized and intermittent slag shipments of the original construction and required a large amount of manual synergy for low-speed high-risk and high-cost conditions. The mucking rock loader combines the functions of hoeing, digging, hoeing, loading, transporting and unloading in the body, walking, digging, collecting, transporting, loading and cleaning the site. To better use the mucking rock loader, let's talk about how the mucking rock loader works.
Mucking rock loader preparation before starting
1. Train the driver. The driver must read this manual thoroughly before operating the unit, and be familiar with the structure, working principle and performance of the machine. Operation method and maintenance technology are allowed to operate on the machine after passing the examination.
2. Determine if the oil level in the fuel tank is maintained at the position of the liquid level liquid temperature gauge. The hydraulic oil must be kept clean. It is not allowed to be filled with unclean containers and must be added from the refueling air filter. Use No. 46 anti-wear hydraulic oil, use No. 32 anti-wear hydraulic oil in winter, in the case of difficult hydraulic oil source, use No. 40 mechanical oil in summer and No. 30 mechanical oil in winter.
3. Check each fastener in detail, whether the electrical components and hydraulic components are in good condition. If there is any abnormality, it should be eliminated in time.
4. Turn on the power.
5. Place each operating handle in the neutral position.
Second, mucking rock loader operating procedures
1. Close the air switch
2. Press the start button, press the start button 2 when the motor is running normally, and work after 2 to 3 minutes of no-load operation.
3. Operate the handle of the lifting tank, lower the head of the transport tank to the ground, and lift the tail to let the transport equipment enter the unloading position.
4. Operate the pilot valve to advance the loader while leveling the ground.
5. Operate the scraper transport handle and let the scraper chain idling for 1-2 minutes.
6. According to the instructions of the console, the mucking rock loader, the boom, the arm and the bucket are combined to perform the slag loading. When loading the rock, it is necessary to pay attention to the machine to move forward, which can speed up the loading.
