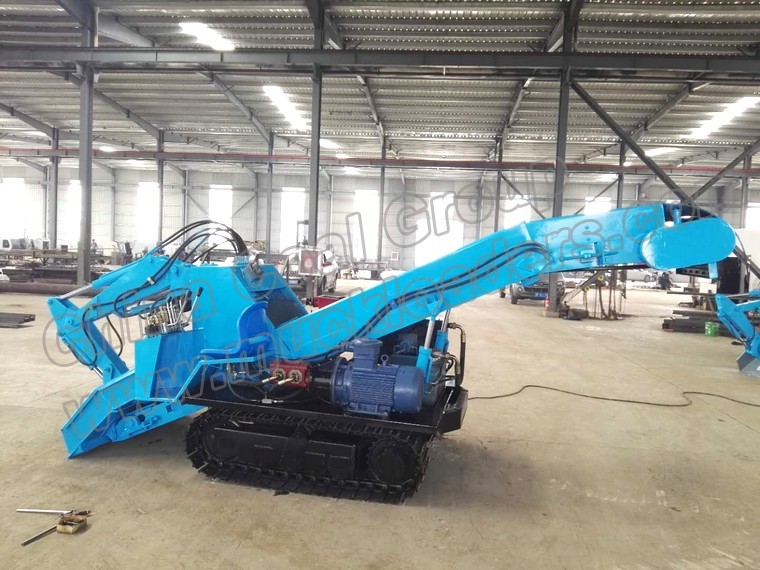

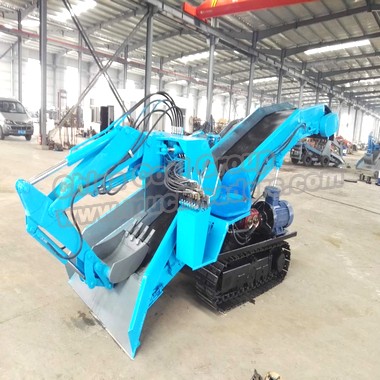

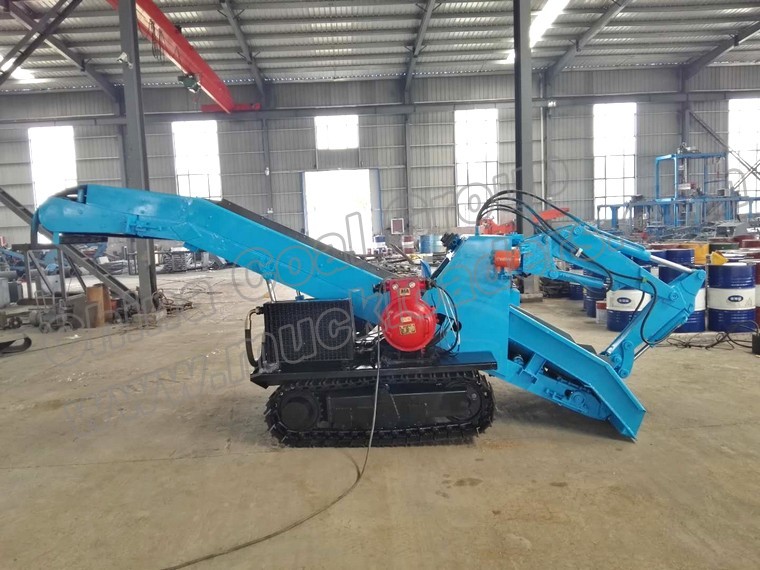

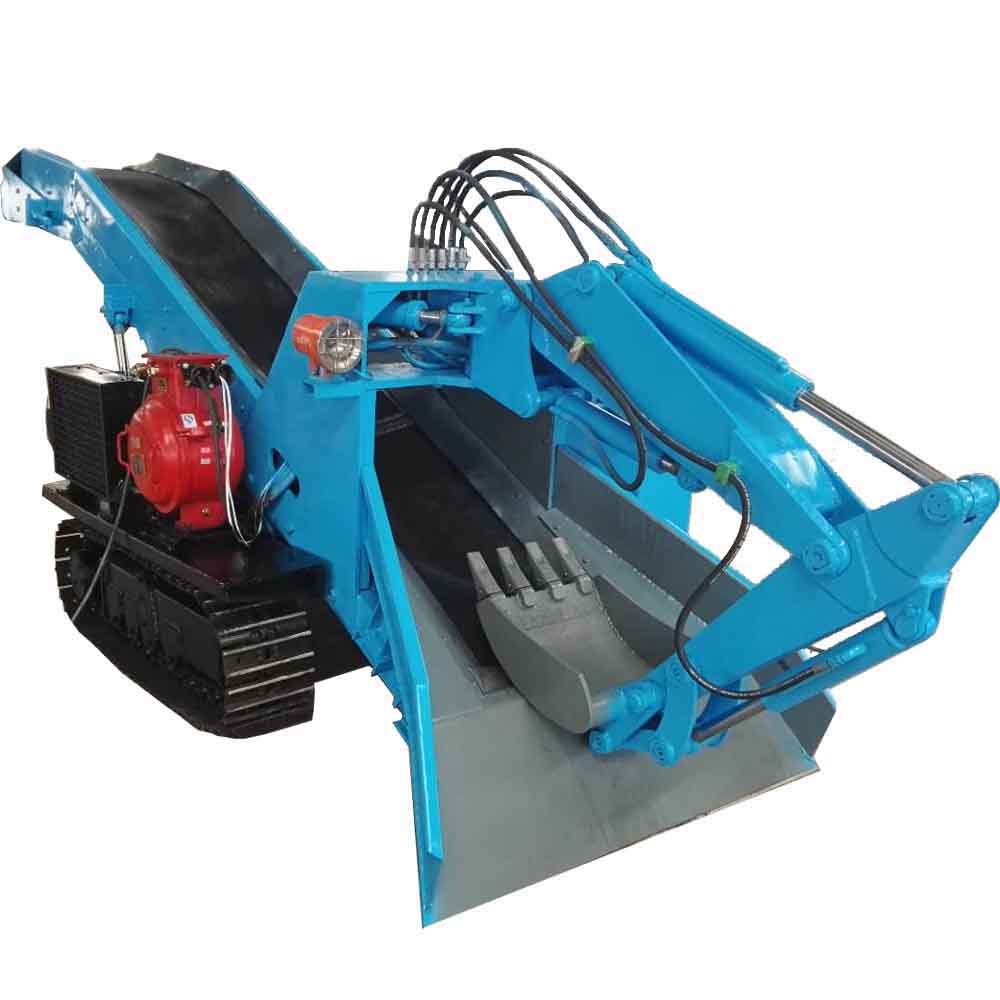

LWLX-60/30L Crawler Mucking Loader is a continuous efficient mucking machine. It can be
Contact Us Product CenterLWLX-60/30L Crawler Mucking Loader is a continuous efficient mucking machine. It can be
used both for tunnel construction and for outdoor work. Mainly used in coal mine and
mining roadway, railway tunnels, culverts, defense and other roadway excavation cave
loading operations. This machine is crawler moving, grab rocks to its own scraper
conveyor, and then dumping the rocks from the end into the shuttle car or mining cars.
Main Parameter ofMain Overall Dimension
|
Model |
LWLX-60/30L |
|
|
Crawler contacting ground length |
2270mm |
|
|
Crawler inner width |
900mm(variable) |
|
|
Crawler plate width |
350/400mm |
|
|
Ground clearance |
280mm(variable) |
|
|
Conveyor inner width |
488mm |
|
|
Dimensions during transport |
Length |
6750mm |
|
Width |
1600mm |
|
|
Height |
1650mm |
|
|
Dimensions during operating |
Length |
7300mm |
|
Width |
1600mm |
|
|
Height |
1800mm |
|
Working Range
|
Model |
LWLX-60/30L |
|
Digging width |
3100mm |
|
Digging distance(from dozer blade) |
1530mm |
|
Digging height |
2300mm |
|
Digging depth below ground level |
500mm |
|
Dumping height |
1400mm(variable) |
|
Minimum dumping height |
1350mm(variable) |
|
Dumping distance |
1600mm(variable) |
|
Max.boom angle |
±35° |
|
Adaptive tunnel dimension(Width x Height) |
≥2x2m |
Functional Parameters
|
Loading ability |
60m3/h |
|
General power |
30kw |
|
Weight |
7800kg |
|
Traveling speed |
0.2±5% m/s |
|
Scraper chain |
Single chain single motor |
|
Adaptive tunnel slope |
≤30° |
|
Minimum turning radius |
≥4m |
|
Ground pressure |
≤0.1Mpa |
|
Steering |
hydraulic |
|
Speed of scraper chain |
25m/min |
|
Volume of hydraulic tank |
135L |
|
Maximum working pressure |
22Mpa |
|
Hydraulic pump |
Gear pumpx4 |
|
Traveling hydraulic motor |
Radial plunger motor x2 |
|
Conveyor hydraulic motor |
Radial plunger motor x1 |
