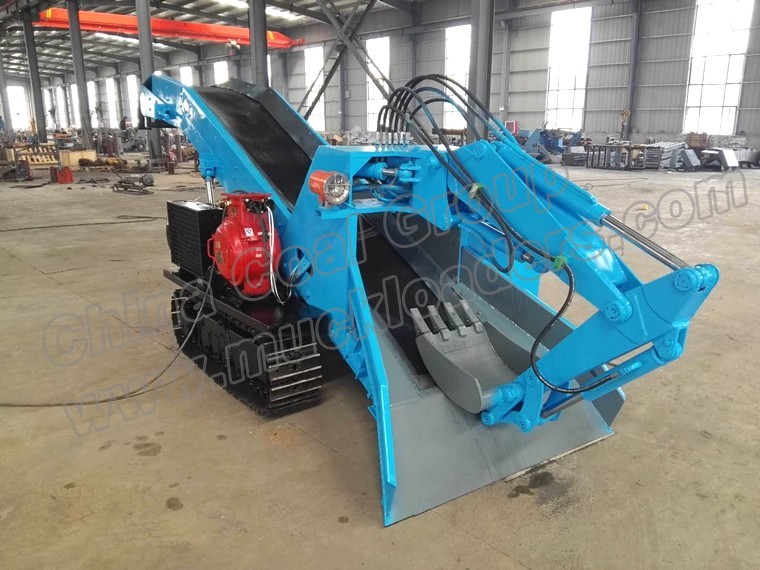

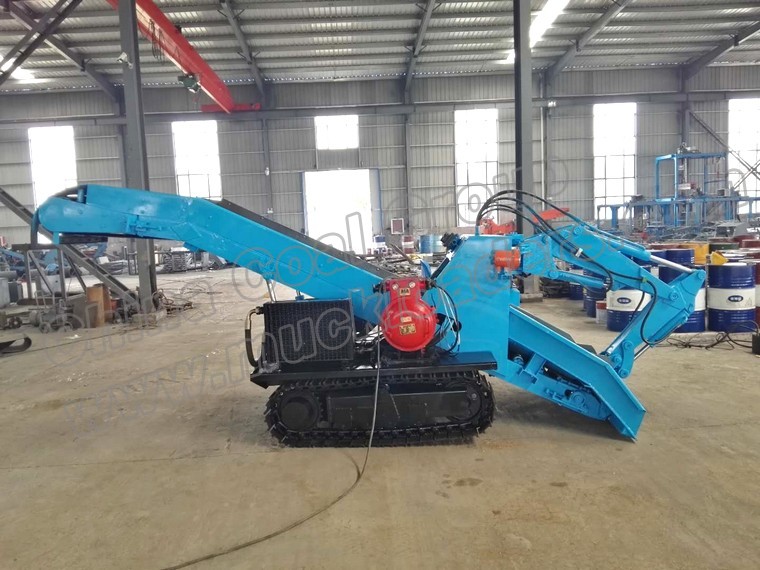

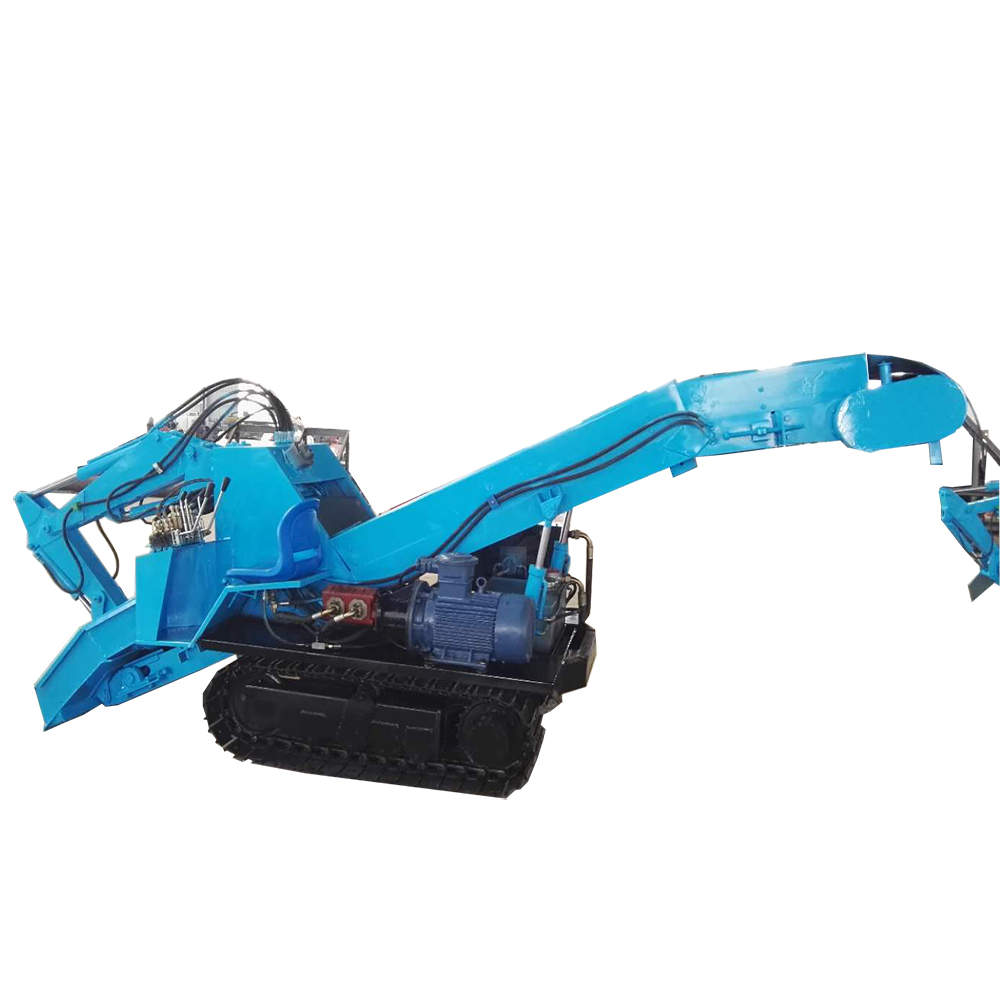

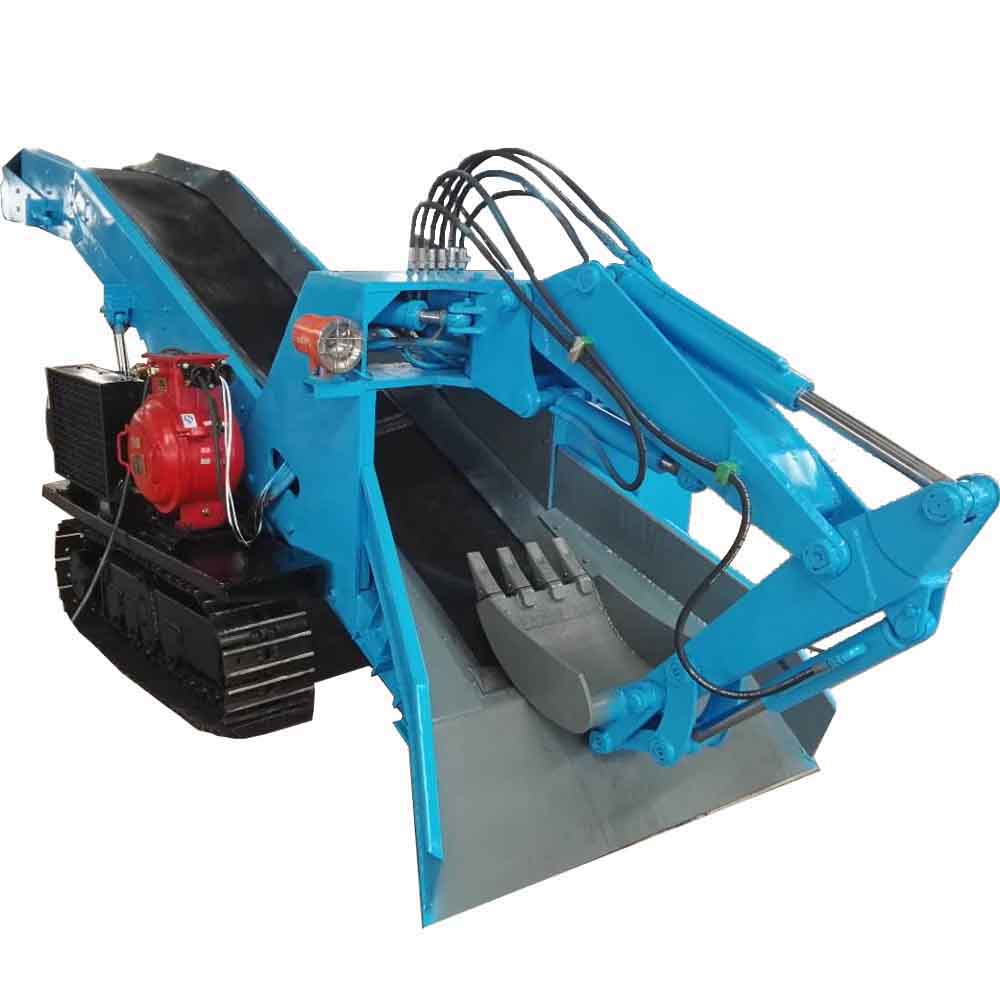

ZWY-80/45L crawler mucking rock loader, special sloping type ≤ 32 degrees, is a continuous production high-efficiency ore-out equipment,
Contact Us Product CenterZWY-80/45L crawler mucking rock loader, special sloping type ≤ 32 degrees, is a continuous production high-efficiency ore-out equipment, mainly used for excavation of mine rock roadway and semi-coal rock roadway, also It can be used for loading operations in diversion tunnels, railway tunnel construction, and national defense cavern construction. It can be used in conjunction with hydraulic mine drilling trucks produced by our company to realize mechanization of mine excavation and greatly increase excavation speed. It can be applied to small sections and slopes. 20°~-32° roadway.
The main features of ZWY-80/45L crawler mucking loader:
Retrieving power, strong loading capacity. Sealed and lubricated crawler mucking loader it easy to adjust the tensioned crawler unit and has a long service life.
Good interchangeability;

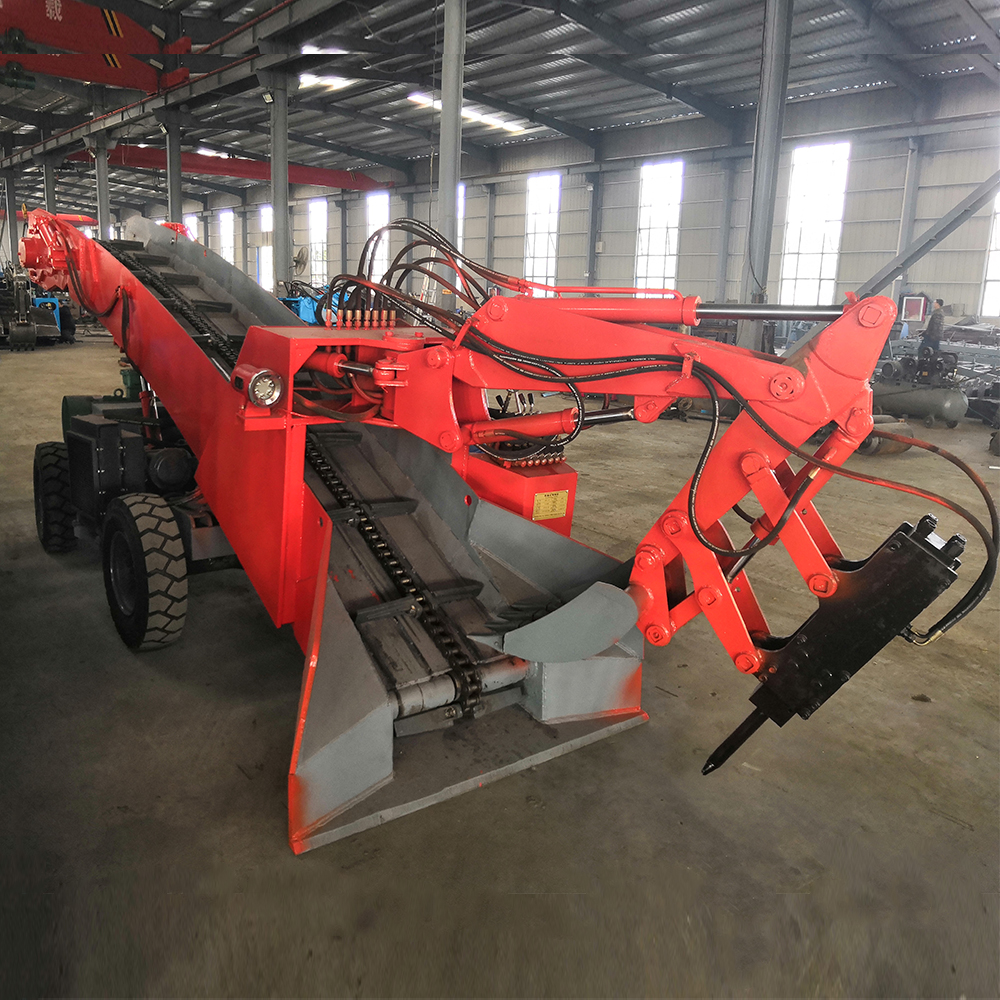

The hydraulic breaker can be installed to crush, repair the large rock and coal blocks after the blasting.
Can use the work arm to achieve the risk of face-to-face, full-section rock loading, leaving no dead ends, no manual cleaning of the work surface.
Pingdong (for roadway) Crawler-type excavating loader [conveyor] Suitable section: Type 60 2.2*2.2 meters; Type 80 2.4*2.4 meters; Type 100 2.6*2.6 meters; Type 120 3.0*3.0 meters; Type 150 3.4*3.4 meters; Type 180 3.8*3.8 meters; Suitable section for large slope deviated well: 60 track type 2.2*2.2 meters section, maximum working slope of 28 degree slope; 80 track type 2.4*2.4 meters section, maximum Working slope 30 degree slope; 100 track type 2.6*2.6 meters section, maximum working slope 30 degrees; 120 track type 2.8*2.8 meters section, maximum working slope 30 degrees; 150 track type 3.0*3.0 meters section, maximum working slope 30 degrees ;180 crawler type 3.8*3.8 meters section, maximum working slope 32 degrees
Applicable to tunnel section, tunnel section, roadway section, laneway section, inclined well section, drift section, diversion tunnel section, diversion tunnel section, culvert section, mine tunnel section, underground construction section, geotechnical engineering section, mining project section, excavation section, large section, small section tunneling, traction, transportation equipment and accessories.
Main Parameter of
|
Project |
Unit |
Technical Parameter |
|
Product Model |
Track Type |
ZWY-80/45L |
|
Total weight |
KG |
11860 |
|
Loading capacity |
m3/h |
80 |
|
Excavation width |
mm |
4800 3200 |
|
Excavation distance |
mm |
1820 1530 |
|
Excavation height |
mm |
2570 2300 |
|
Excavation depth |
mm |
480 320 |
|
Unloading height |
mm |
1470-1646 (variable) |
|
Unloading distance |
mm |
1600 (variable) |
|
Walking speed |
m/s |
0.54±5% |
|
Scraper chain speed |
m/min |
44 |
|
Applicable roadway slope |
(o) |
≤32 |
|
Maximum working pressure |
mpa |
≤32 |
|
Ground pressure |
mpa |
≤ 0.1 |
|
Ground clearance |
mm |
≤ 310 |
|
Total power |
KW |
45 |
|
Track inner width |
mm |
941 (can be widened) |
