Shandong China Coal Mining Mucking Loader Co., Ltd.

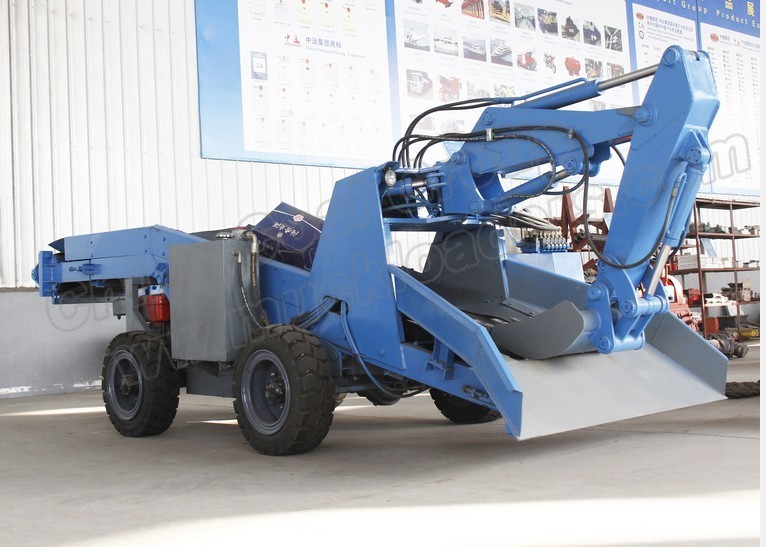

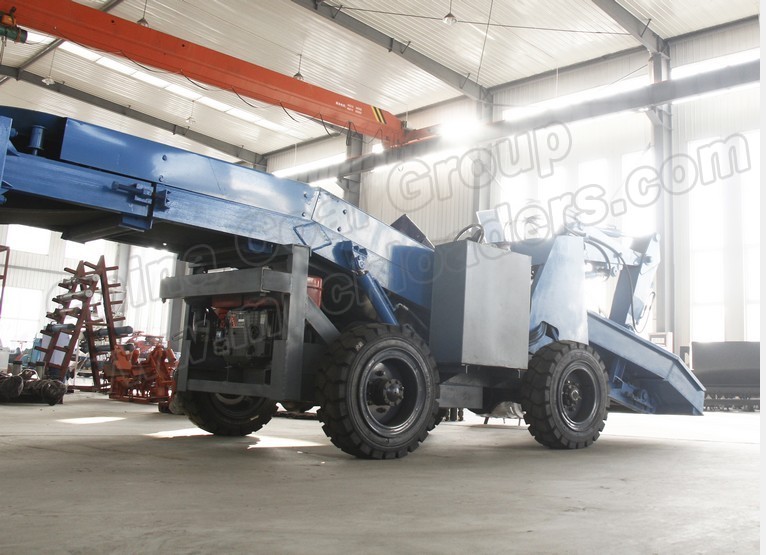

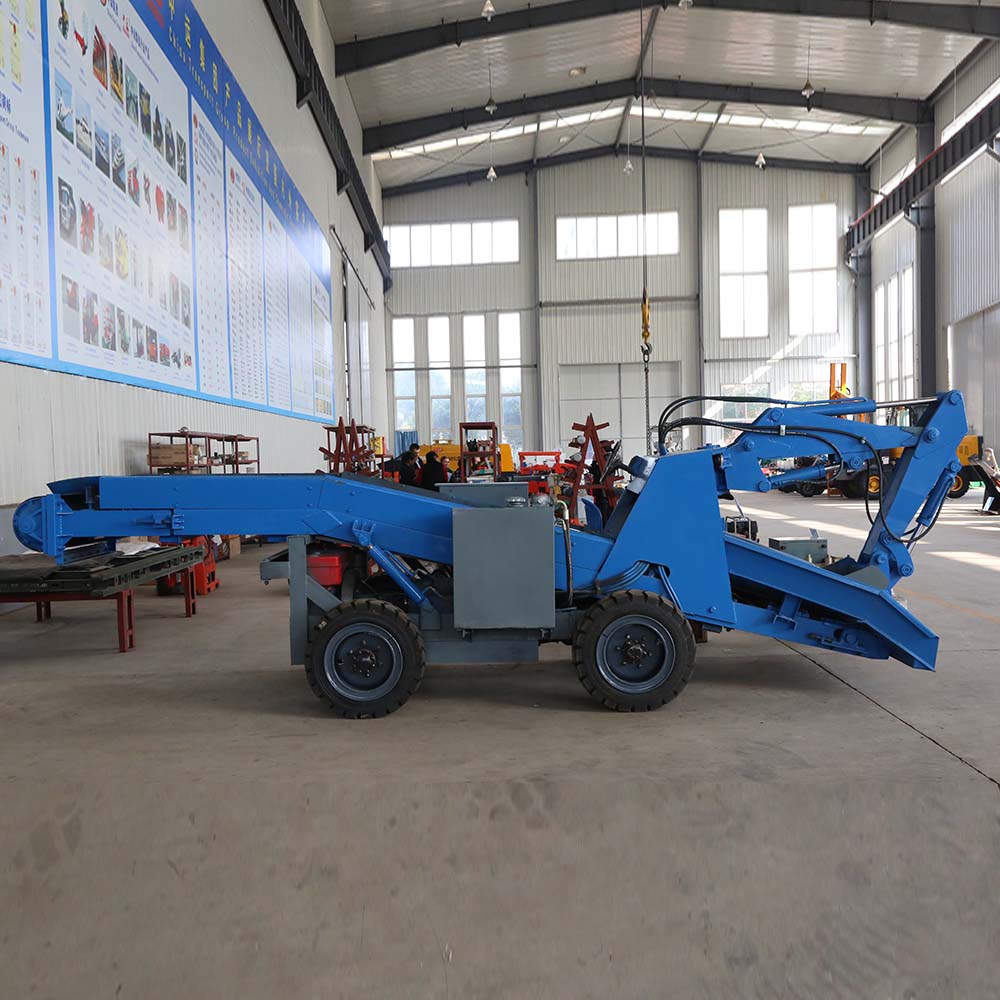

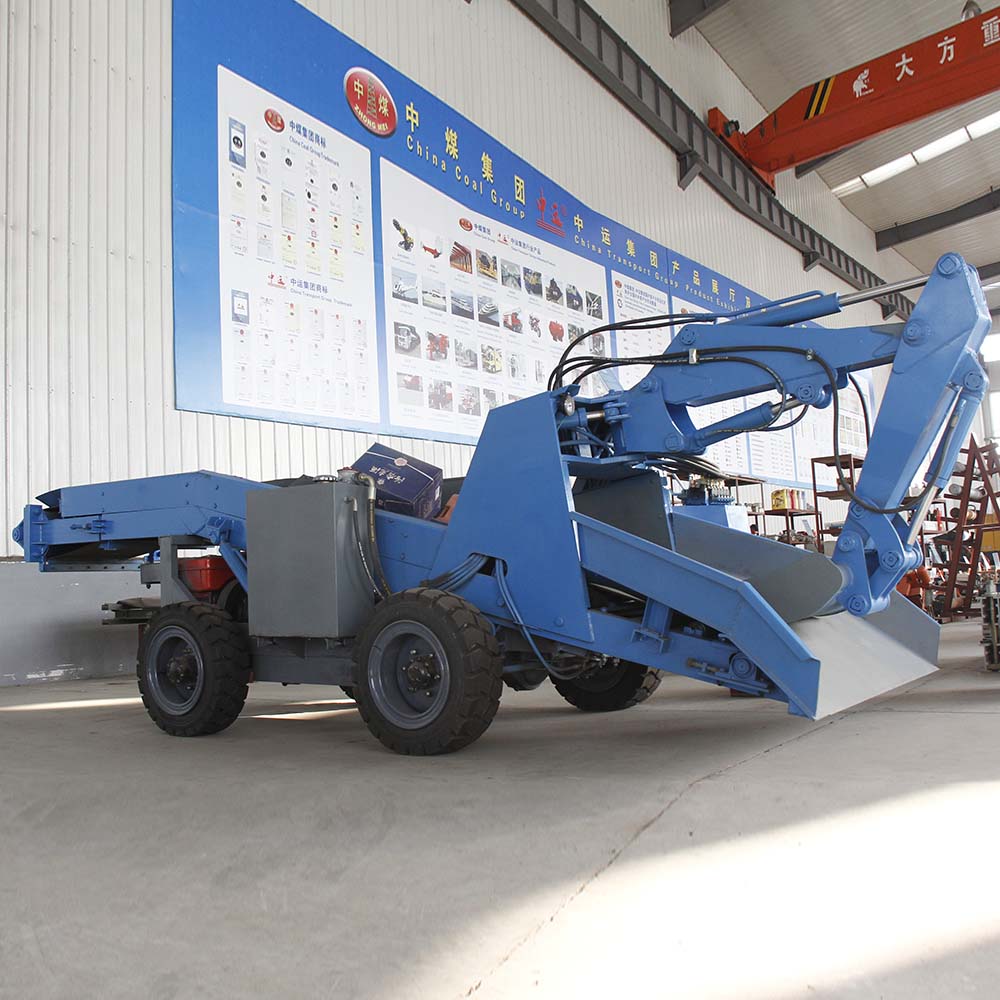

Scraper mucking machine with good quality is the high efficiency mining equipment for continuous production ,mainly used for the excavation of rock roadway and semi coal rock roadway, and for the loading operation in the water diversion tunnel construction, Hot Sale Table Top sale machine Scraper mucking loader with good quality can be realizing the mechanization of coal mine mucking, the driving speed has been greatly improved.
|
Project |
60 Type |
80 Type |
|
Unloading capacity m³/h |
60 |
80 |
|
Digging width mm |
2600 |
2800 |
|
Digging Height mm |
2000 |
2200 |
|
Digging depth mm |
450 |
450 |
|
Digging distance mm |
1500 |
1650 |
|
Unloading height mm |
≥1500 |
≥1700 |
|
Unloading distance mm |
1500 |
1700 |
|
Gradeability |
20 |
20 |
|
Transfer speed m/min |
24 |
24 |
|
Walking speed km/h |
3 |
3 |
|
Ground clearance mm |
260 |
300 |
|
Wheel gauge mm |
1200 |
1530 |
|
Wheelbase mm |
1450 |
1600 |
|
Rated voltage Mpa |
12.5 |
12.5 |
|
Motor power kw |
11+4 |
11+4 |
|
Max material passing size mm |
600*500 |
700*500 |
|
Walking slope° |
＜12 |
＜12 |
|
Working section m |
2.3*2.3 |
2.5*2.5 |
|
Dismentions mm |
5500*1600*1700 |
5800*1800*1800 |
