YZW Crawler Belt Type Tunnel Mucking Loader

China Coal Group specialized in all types Mucking Machine,Its main feature is that the displacement of the main pump is proportional to the signal pressure output by the pilot operating handle. The ma

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of YZW Crawler Belt Type Tunnel Mucking Loader

China Coal Group specialized in all types Mucking Machine,Its main feature is that the displacement of the main pump is proportional to the signal pressure output by the pilot operating handle. The main controller judges the flow demand of the actuator and its changing trend according to the pilot pressure signal and its changing trend, and accordingly adjusts the flows of main pump,so that the flow supply of the system can dynamically satisfy the flow demand  of system  actuator. he system has a small loss of medium flow in the relative negative flow system, and the reliability is higher in the relative load sensitive system, and the compound action is more energy efficient. This series of machines has an efficiency of about 8% higher than other models, and the energy consumption has dropped by about 10%.

Parameter of YZW Crawler Belt Type Tunnel Mucking Loader

Project

60 Type

80 Type

Unloading capacity m³/h

60

80

Digging width mm

2200

2500

Digging Height mm

2000

2300

Digging depth mm

400

500

Digging distance mm

1450

1600

Unloading height mm

≥1500

≥1600

Unloading distance mm

1500

1700

Gradeability

25

25

Transfer speed m/min

36

36

Walking speed km/h

3

3

Ground clearance mm

300

300

Rated voltage Mpa

15

15

Motor power kw

18.5+5

18.5+5

Walking slope°

12

12

Working section m

2*2

2.4*2.4

Dismentions mm

5400*1500*1500

5600*1800*1800

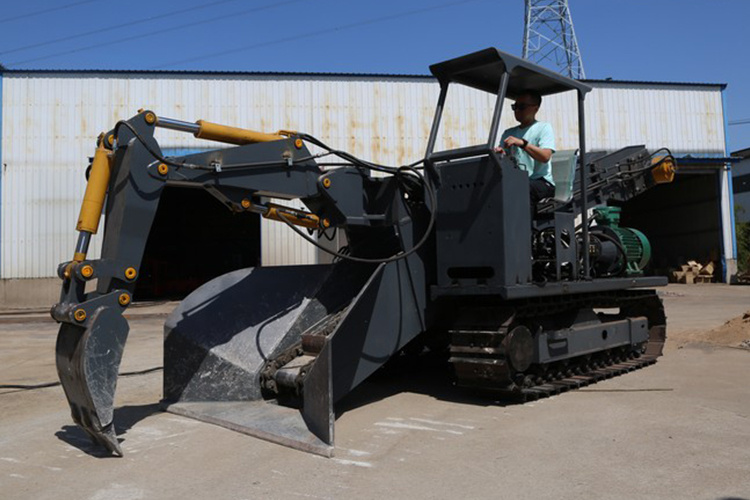

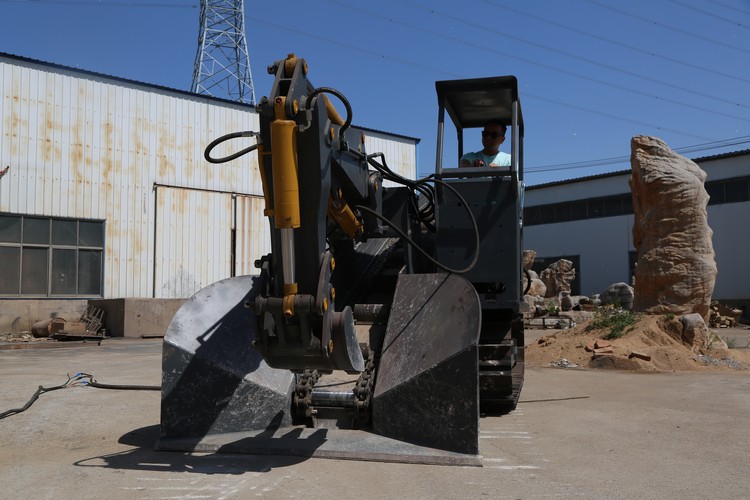

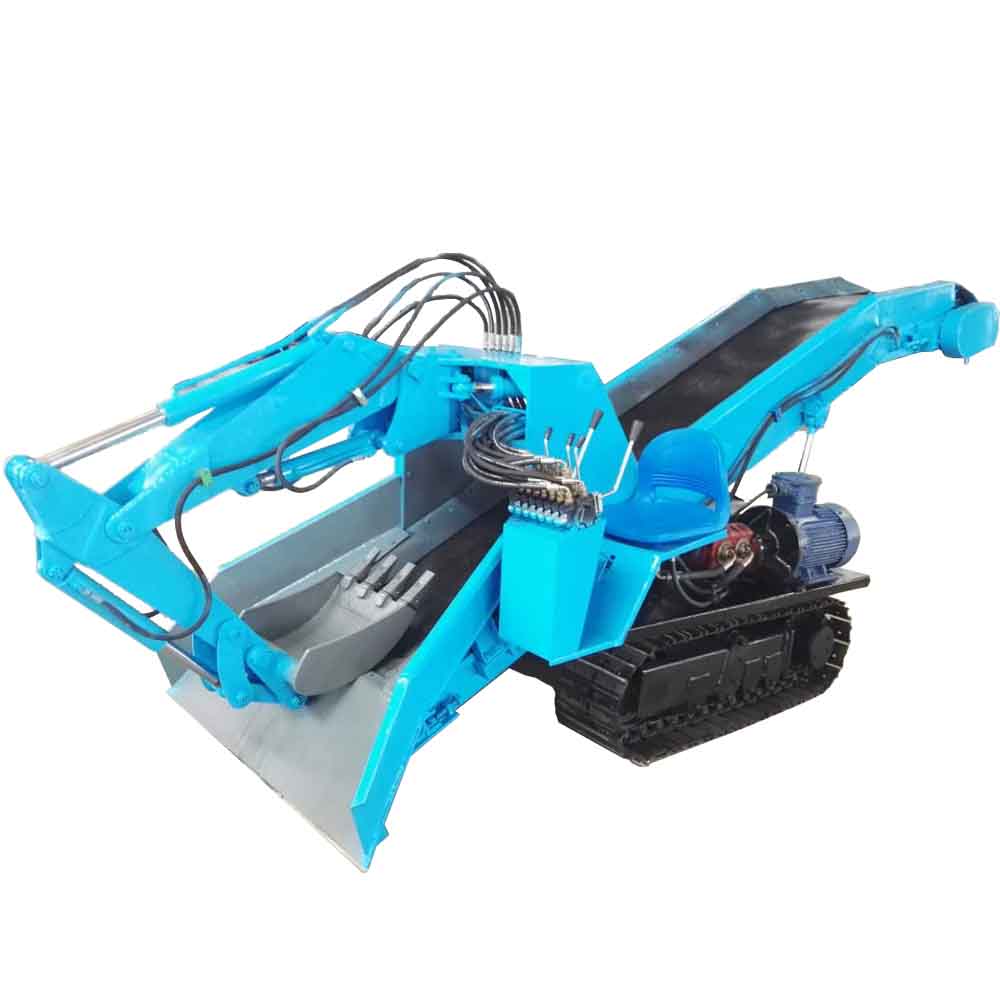

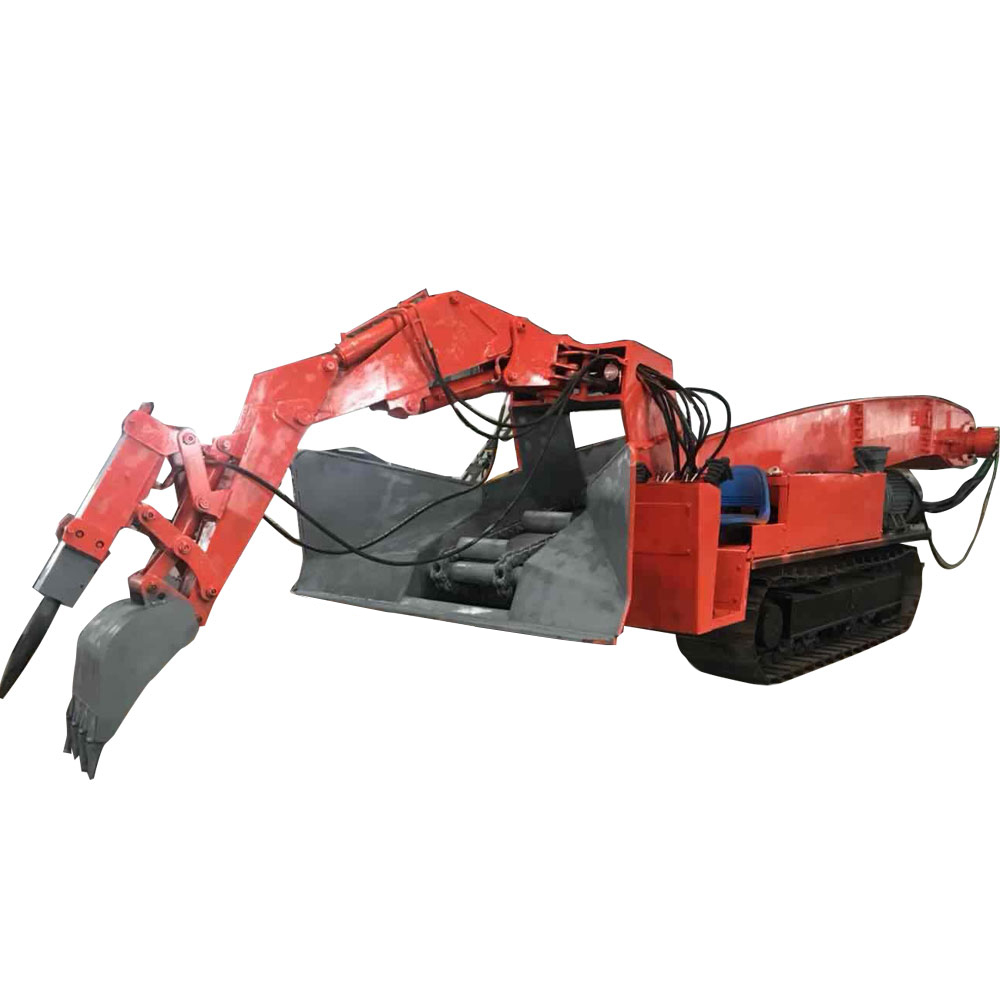

Pictures of YZW Crawler Belt Type Tunnel Mucking Loader
