YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine

YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine

Date:2024-05-23     Label:

Mini Mucking Loader

Wheeled Mucking Loader

Tunnel Mucking Machine

The minining mucking machine also called haggloader, A kind of underground construction machinery typically used in the excavating of tunnel mining, mine engineering and  hydraulic  engineering. China

Contact Us Product Center
Introduction of

YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine

The Tunnel Mucking Machine also called haggloader, A kind of underground construction machinery typically used in the excavating of tunnel mining, mine engineering and  hydraulic  engineering. China Coal Group Mucking loader has five functions: hydraulic  transmission, excavating and  collect, transport,  loading and  unloading. China Coal Group mucking loader or  haggloader is also utilized to collect, convey the g ravelly soil in the process of  production  operation of small  phosphate with narrow space and  small  scale of  production. We have  two types of  mucking loader with  wheel type  and crawler type. With loading capacity of 50 cube, 60 cube, 80 cube and 120 cube. Our mucking loader can be used in coal mine, rock loading and excavation, tunnel excavation, underground engineer and so on.

Main Parameter of

YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine

Project

40Type

50Type

60 Type

Loading capacity m³/h

40

50

60

Digging width mm

1800

2000

2200

Excavation Height mm

1700

1850

2000

Excavation depth mm

400

400

400

Digging distance mm

1200

1320

1320

Unloading height mm

≥1300

≥1300

≥1500

Unloading distance mm

1400

1400

1500

Gradeability

20

20

20

Belt speed m/min

36

36

36

Walking speed km/h

3

3

3

Ground clearance mm

180

240

260

Tire spacing mm

1100

1100

1200

Axle spacing mm

1200

1200

1450

Working pressure Mpa

12.5

12.5

12.5

Motor power kw

11+4

11+4

11+4

Max entry size mm

400*400

500*400

500*500

Walking slope°

5

5

5

Working section m

1.6*1.8

2*2

2.2*2.2

Dismentions mm

4000*1200*1400

4200*1300*1400

4200*1500*1500

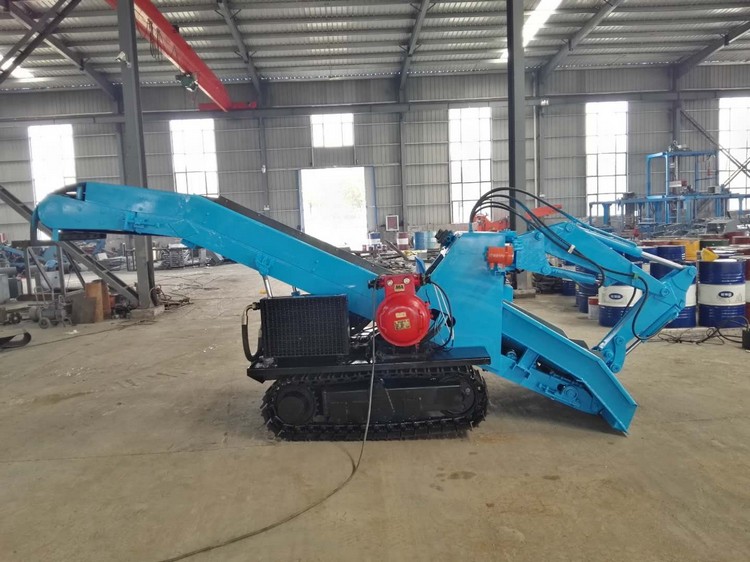

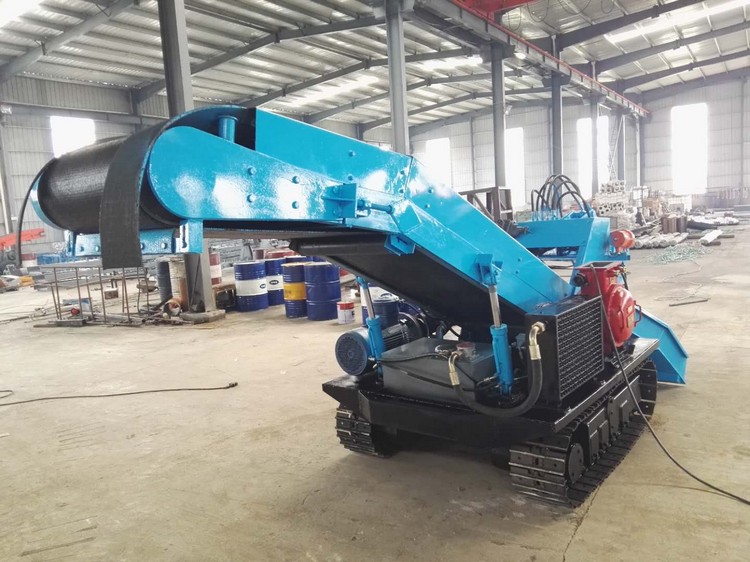

PHOTOS OF

YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine

YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine
YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine
PHOTOS OF

YZW Mini Wheeled Fold Tail Type Tunnel Mucking Machine
