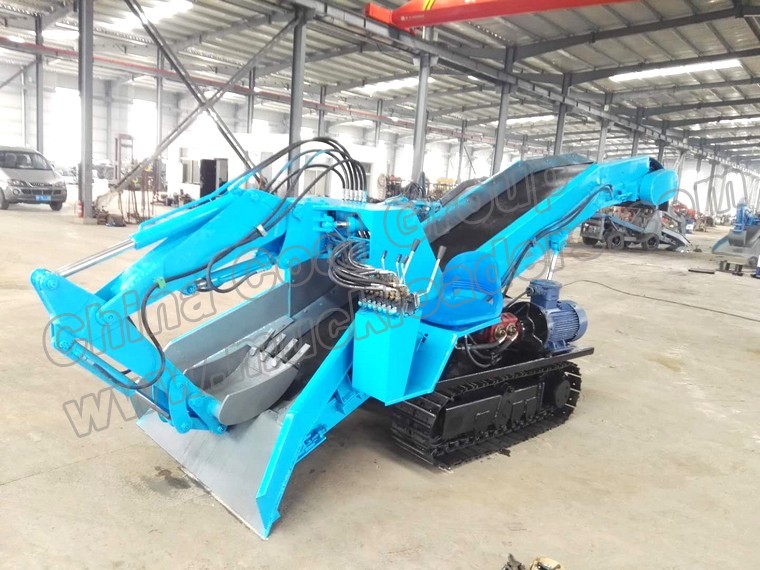

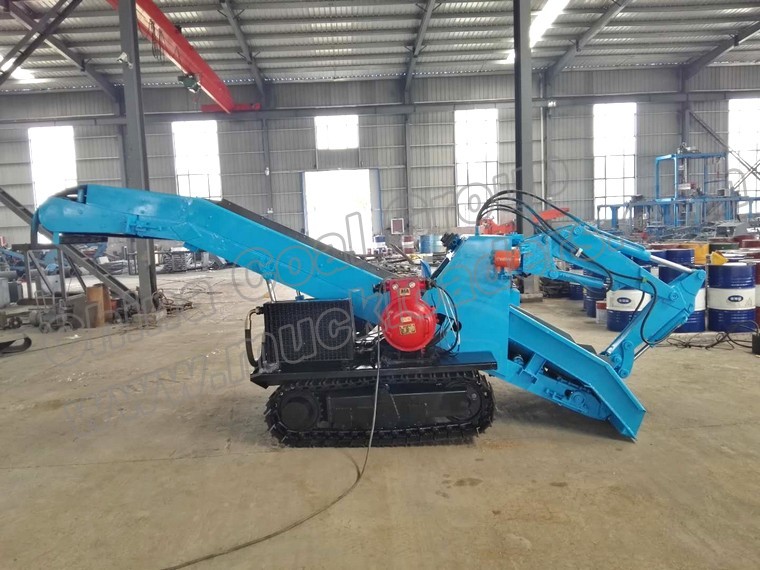

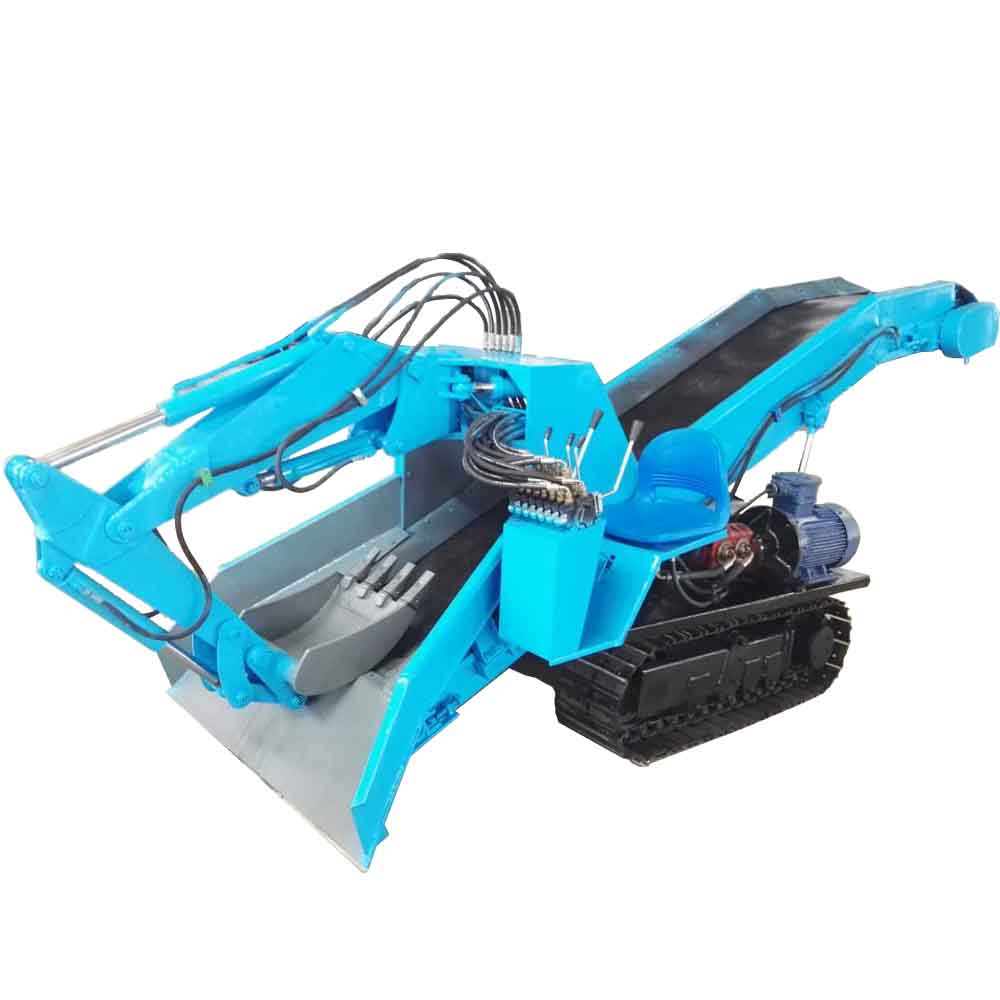

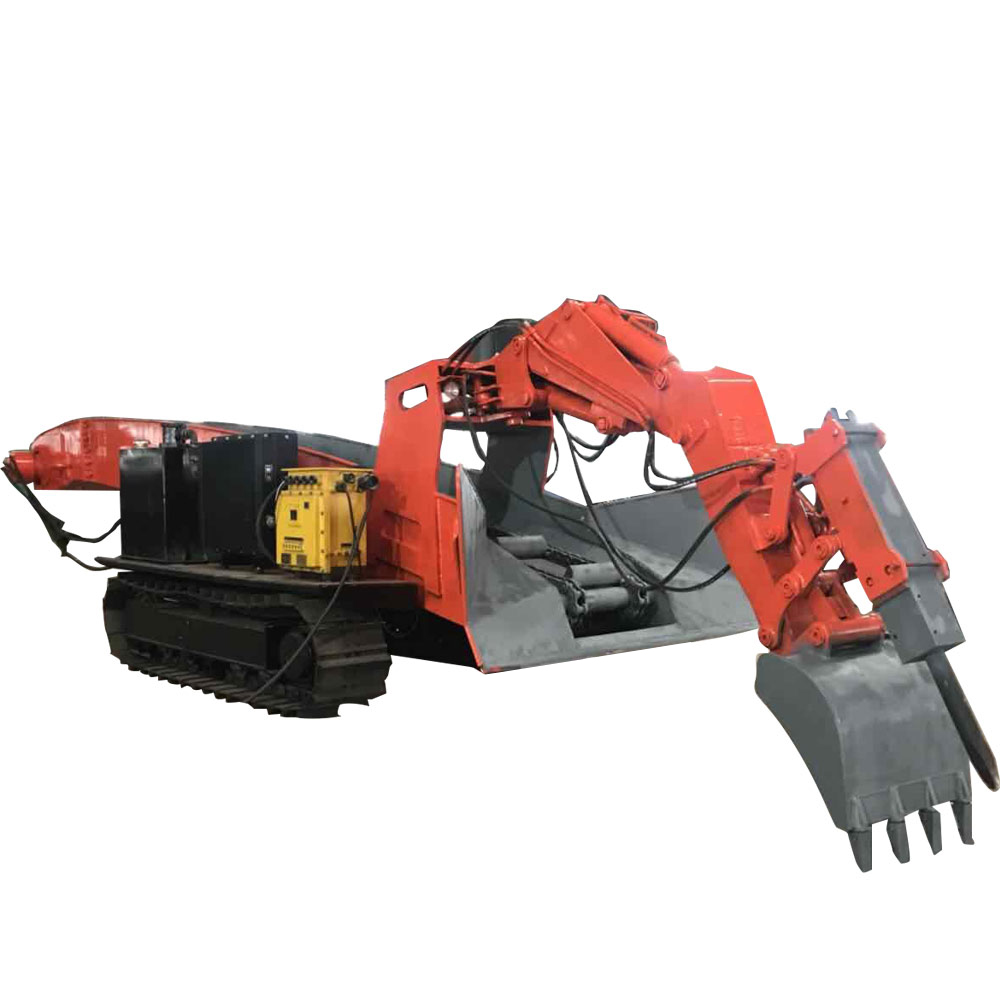

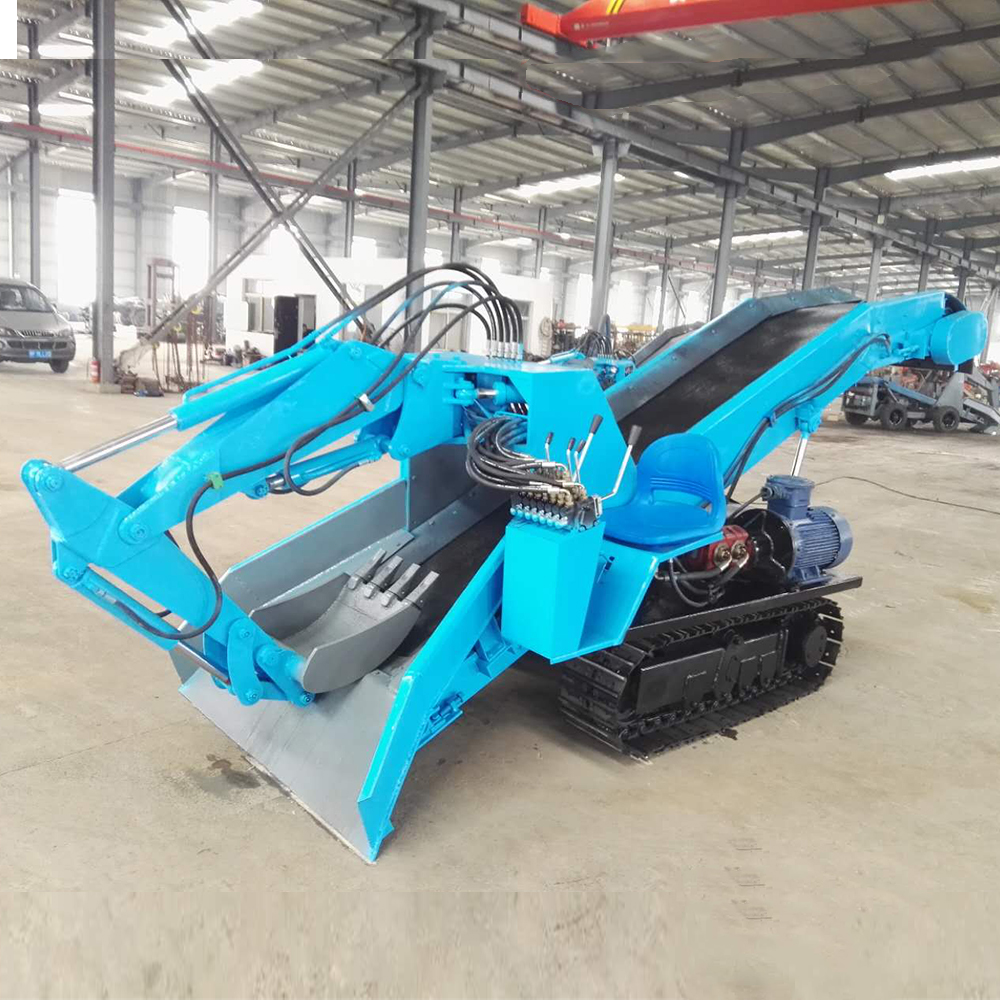

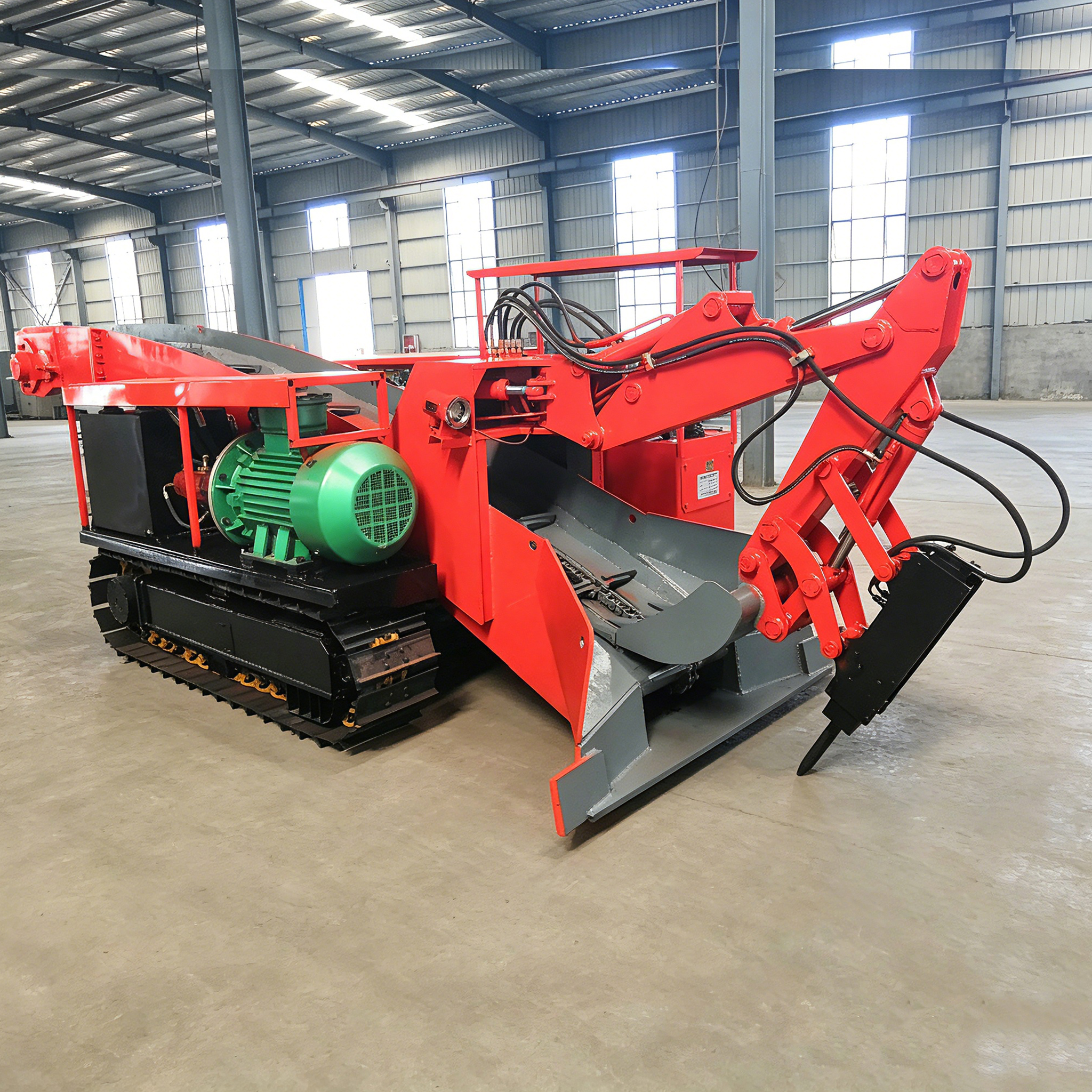

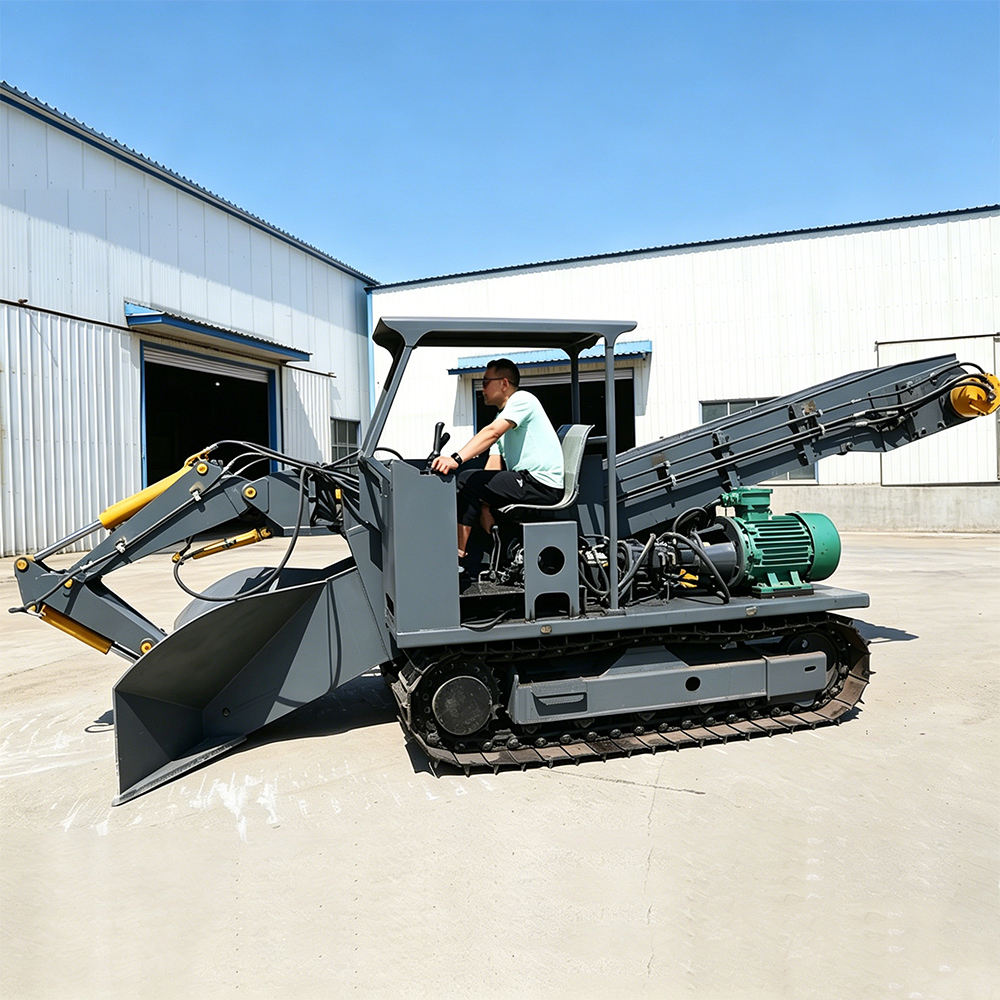

Underground mining mucking loader is also called excavating loader, integrates multiple functions including excavation,
Contact Us Product CenterUnderground mining mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.
The main action is pilot valve control, easy and convenient operation, safe and comfortable, flexible and strong climbing ability, and smooth work without impact.
Can use the work arm to achieve the risk of face-to-face, full-section rock loading, leaving no dead ends, no manual cleaning of the work surface.
Main Parameter of|
Model No. |
MLT-80 |
|
Max. Loading Capacity |
80m3/hr |
|
Min. Workable Tunnel Size |
2,400 x 2,400mm |
|
Total Weight |
6,800kg |
|
Wheelbase |
1,950mm |
|
Max. Mucking Width |
3,700mm |
|
Max. Mucking Height |
3,250mm |
|
Max. Mucking Distance |
1,800mm |
|
Max. Unloading Height |
2,350mm |
|
Max. Mucking Depth |
650mm |
|
Chain Conveyor Speed |
0.50 – 0.65m/s |
|
Driving Speed |
0.40 – 0.60m/s |
|
Max. Noise |
95 dB(A) |
|
Ground Clearance |
230mm |
|
Working Gradeability |
11° (Max. Gradeability 18°) |
|
Main Motor Power |
37KW |
|
Max. Working Dimension |
8,945 x 1,700 x 2,130mm |
|
Rated System Pressure |
28Mpa |
|
Rated Working Pressure |
23Mpa |
|
Rated Control Pressure |
3Mpa |
|
Max. Rock Size |
500mm |
|
Dimension for Working |
7,750 x3,700 x2,850mm |
|
Dimension for Transportation |
7,200 x1,800 x2,400mm |
