China Coal Group Specialized in all types mucking machine, rock mucking loader. Mucking rock loader is suitable for the construction machinery of tunnel excavation, mine engineering, water conservancy
Contact Us Product Center

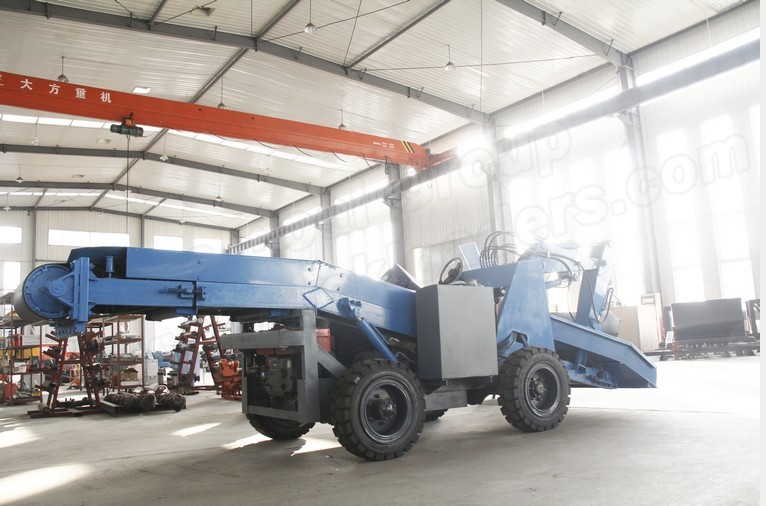

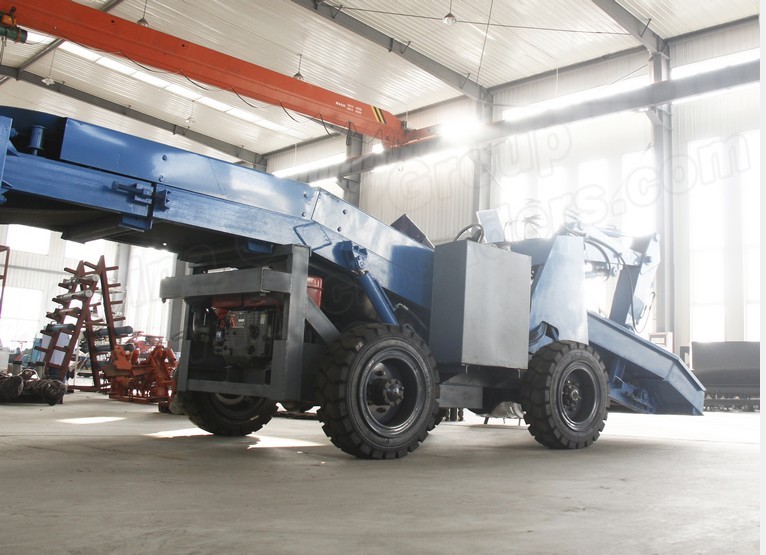

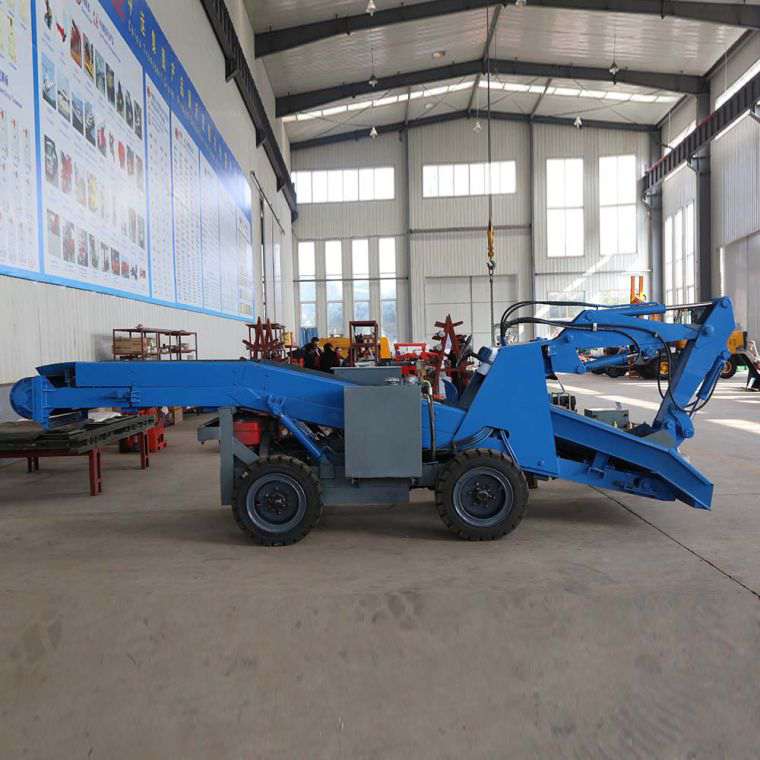

China Coal Group Specialized in all types mucking machine, Tunnel Mucking Loader. Mucking rock loader is suitable for the construction machinery of tunnel excavation, mine engineering, water conservancy engineering, small section diversion tunnel and mine slag (ore) machinery. The mucking rock loader is mainly used in some small scale phosphate mines with narrow production space. Collection and loading of gravel in non-explosive dangerous mines such as metal non-metallic mines.
1.Load sensing hydraulic priority to, stable and reliable, energy conservation and significant.
2.Durable, each gear ratio reasonable matching, reduce the power consumption.
3.Reduce the power consumption.
4.Simple structure and reliable performance.
5.semi-enclosed assembling,easy to maintain.
|
Project |
40Type |
50Type |
60 Type |
80 Type |
120Type |
|
Loading capacity m³/h |
40 |
50 |
60 |
80 |
120 |
|
Digging width mm |
2000 |
2000 |
2200 |
2600 |
3000 |
|
Excavation Height mm |
1700 |
1850 |
2000 |
2300 |
2600 |
|
Excavation depth mm |
400 |
400 |
400 |
500 |
600 |
|
Digging distance mm |
1200 |
1320 |
1320 |
1400 |
1500 |
|
Unloading height mm |
≥1300 |
≥1300 |
≥1500 |
≥1500 |
≥1800 |
|
Unloading distance mm |
1400 |
1400 |
1500 |
1700 |
1900 |
|
Gradeability |
20 |
20 |
20 |
20 |
20 |
|
Belt speed m/min |
36 |
36 |
36 |
36 |
36 |
|
Walking speed km/h |
3 |
3 |
3 |
3 |
3 |
|
Ground clearance mm |
180 |
240 |
260 |
300 |
300 |
|
Tire spacing mm |
1100 |
1100 |
1200 |
1530 |
1530 |
|
Axle spacing mm |
1200 |
1200 |
1450 |
1600 |
1800 |
|
Working pressure Mpa |
12.5 |
12.5 |
12.5 |
12.5 |
|
|
Motor power kw |
11+4 |
11+4 |
11+4 |
11+4 |
11+4 |
|
Max entry size mm |
400*400 |
500*400 |
500*500 |
600*500 |
700*600 |
|
Walking slope° |
＜5 |
＜5 |
＜5 |
＜5 |
＜5 |
|
Working section m |
1.6*1.8 |
1.8*1.8 |
2.2*2.2 |
2.4*2.4 |
2.8*2.8 |
|
Dismentions mm |
4750*1250*1450 |
5000*1400*1500 |
5200*1500*1600 |
5600*1700*1800 |
6200*1900*2000 |
