It integrates various functions such as excavation, transportation, loading and running, and has high work efficiency, strong adaptability to space, and low air pollution inside the tunnel.
Mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.
The crawler mucking loader can fully load gravel without leaving dead corners, eliminating the need to manually clean the site, or digging trenches on both sides of the roadway.
four Crawler mucking loader advantages

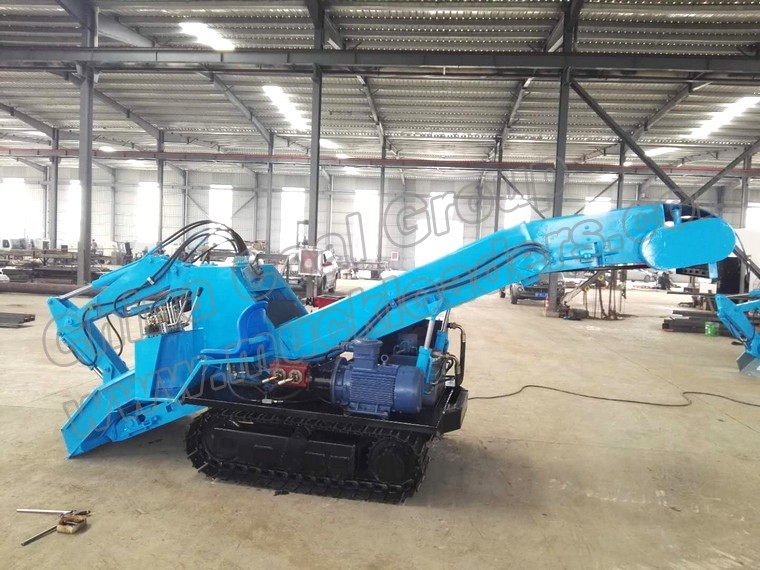

The crawler mucking loade is a crawling move that grabs the rock to its own scraper conveyor and then dumps the rock from the
end into a shuttle or mining vehicle.
Load sensing hydraulic priority, stable and reliable, energy saving and significant.
Durable, each gear ratio is properly matched to reduce power consumption.
The structure is simple, the chassis is stable and the performance is reliable.
Crawler mucking loade semi-closed assembly, easy to disassemble, easy to maintain.
The main components are top-level brands at home and abroad, the overall design is reasonable, and an overload feedback system can be selected. The air-cooled radiator has a large power to ensure stable system oil temperature. Excellent filter to prevent pollution of hydraulic system and protect hydraulic components such as oil pump.
Crawler mucking loade large and small arm structural members are adjustable to suit different working conditions. The gantry is connected to the trough to extend the working range and arm height and eliminate danger.

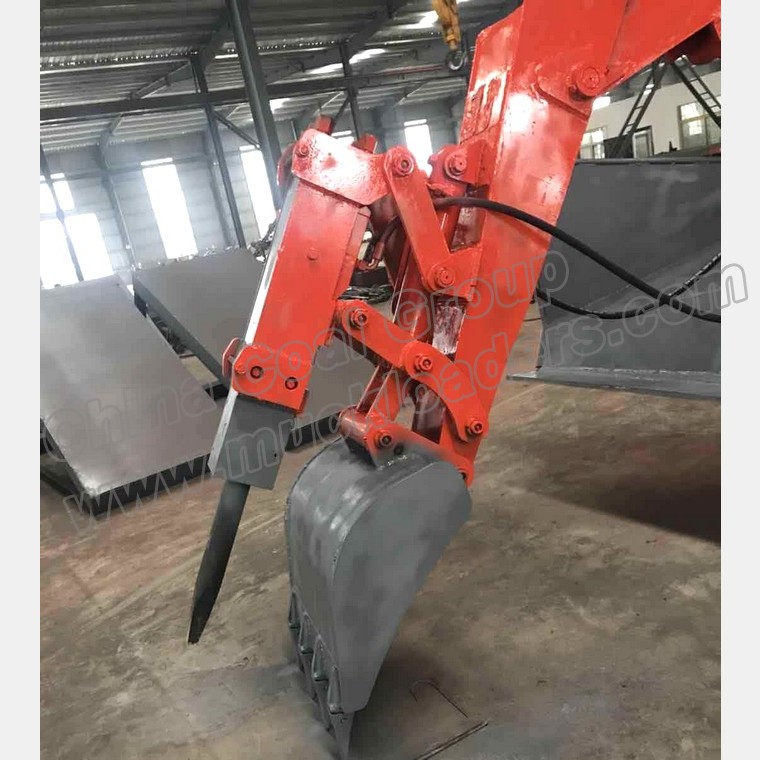

The bucket is made of imported, wear-resistant steel for improved durability.
The bucket is made of imported, wear-resistant steel for improved durability. The bushing is manufactured by NSK (Japan), which reduces wear on the needle roller and bushing for better maintenance.
The travel motor is designed at the front to reduce the load from the guide pulley to the tensioning device as the equipment climbs. The track is composed of high single teeth, which has strong traction and increases the friction with the ground to ensure the climbing ability and walking stability of the equipment. According to different tunnel conditions, the inner width of the track can be widened to improve the ground clearance.
Crawler mucking loade body frame structure, good rigidity and high tensile strength. It is divided into two parts and is connected by high-strength bolts to solve the problem of large tunnel transportation. The crawler mucking loade can fully load the gravel without leaving a dead corner. It does not need to manually clean the site, and it can also dig trenches on both sides of the roadway.
Crawler mucking loade for tunnel construction and outdoor work. Mainly used in coal mines and mining roadways, railway tunnels, culverts, defenses and other roadway excavation cave loading machinery.
The crawler mucking loade is a crawling move that grabs the rock to its own scraper conveyor and then dumps the rock from the end into a shuttle or mining vehicle.
| Parameter of HWY-80 Underground Coal Mine Tunnel Crawler Mining Mucking Loader | |
|---|---|
| Machine Slag Model | ZWY-80/40L |
| Technical productivity | 80m3/h |
| Max excavation height | 2300mm |
| Max excavation width | 3500mm |
| Max excavation depth | 400mm |
| Max digging force | 1.5T |
| Gradeability | 300mm |
| Fuel tank capacity | 260L |
| Machine weight | 8000kg |
| Walking speed | 0.63km/h |
| Unload distance | 2000mm (can add length) |
| Unload weight | 1400-1600mm (can add length) |
| Dimensions (L*W*H): | 7120x1500x2200 (Working state) |
| 6150x1500x1830 (Transport status) | |
