Classification And Introduction Of Mucking Loader

Classification And Introduction Of Mucking Loader

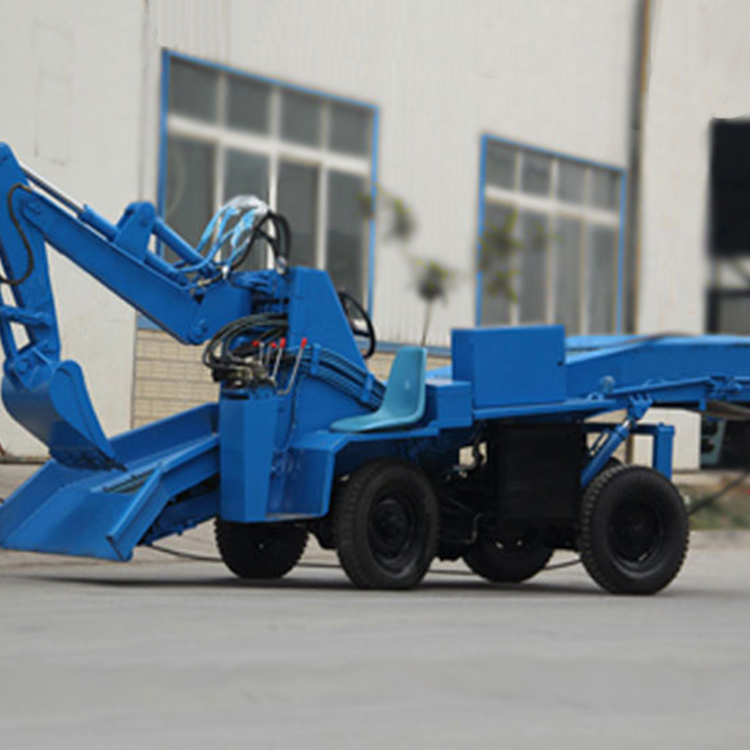

1. Telescopic mucking loader.
This mucking machine consists of a telescopic arm, a tilting mechanism, a slewing mechanism and a base. The front end of the telescopic arm of the mucking machine is connected to the slag scraping plate and supported on a fixed roller, and the sprocket chain is driven by a hydraulic motor or an air motor to make a reciprocating slag scraping movement. The tilting mechanism of the mucking rock loader is driven by a hydraulic cylinder or a cylinder, so that the telescopic arm can tilt up and down ≤15 degrees around the hinge fulcrum.
The above two mechanisms are installed on the rotary mechanism. The rotation angle of the rotating part is generally ≤180 degrees, and most of them are driven by hydraulic cylinders.
2. Trolley type mucking rock loader
The slag scraping arm, tilting and rotating mechanism of the mucking rock loader are all placed on the trolley. The trolley is driven by a cylinder-steel rope double-speed mechanism to perform reciprocating slag scraping movement. The above working device is supported on the trolley by a vertical shaft, and a double cylinder and a crank push the boom to rotate horizontally around the vertical shaft.

The lifting mechanism is a motor-worm gear screw pair, and the original height of the mucking machine is adjusted by changing the length of the rear link in the parallel four-link.
