Everything has its own price, and it has its own value. Today, let's talk about the factors that affect the price fluctuation of mucking machine.

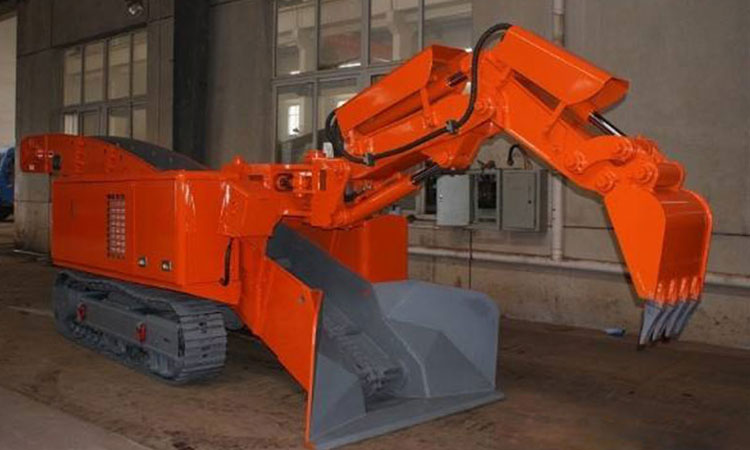

Like us, the mucking machine is mainly composed of a backhoe mechanism, a transport tank, a traveling mechanism, a frame assembly, a motor oil pump assembly, a hydraulic operating system, and an electrical system.
Among them, the walking mechanism is the basis of the whole machine, and it needs to advance and retreat in the work. The hydraulic motor drives the driving shaft to rotate, the clutch drives the driving gear to rotate, and the front axle shaft gear rotates the front wheel shaft through the intermediate shaft double gear, and the front wheel axle sprocket rotates the rear wheel shaft through the chain to realize the four wheels of the mucking machine. drive. It has the characteristics of reliable walking and large traction. Other component features are similar to the crawler mucking loader.
The mucking machine is designed to have a gauge of 600 mm, 762 mm, and 900 mm, and the radius of the curve should be greater than 12 m. The temporary rail of the work site should be 38 Kg/m or 43 Kg/m. The length is 2.5~3m, and the front end of the rail is made of steel sleepers (channel steel), which is fastened by the clamping plate and is firm and reliable. The working site is required, the water level is lower than the rail surface, and the drainage of the working surface is required to be good. In order to prevent the whole machine from operating in the roadway, the distance between the center of the track and the wall of the roadway is required to be no less than 1000mm. The ground and track should be flat and should not sink.
