China Coal ZWY Mucking loader is a kind of continuous production of high efficiency mining equipment, mainly used for the hole of the mining work in the narrow space, such as metal, non-metallic miner

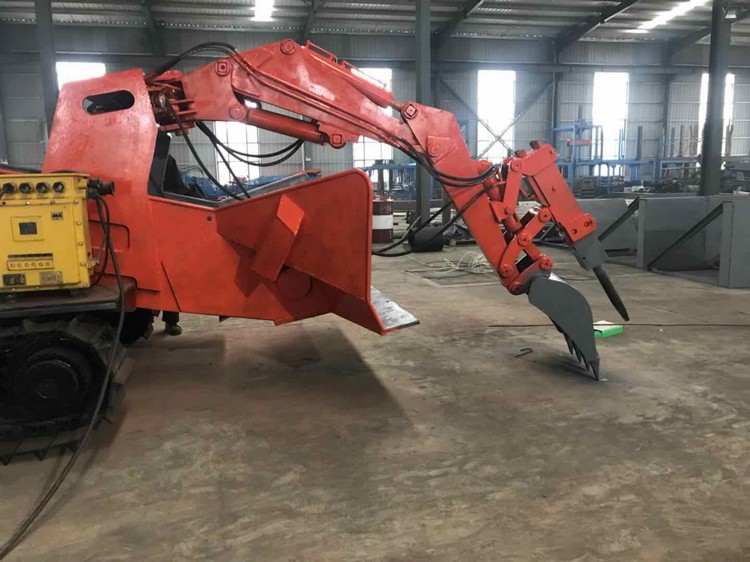

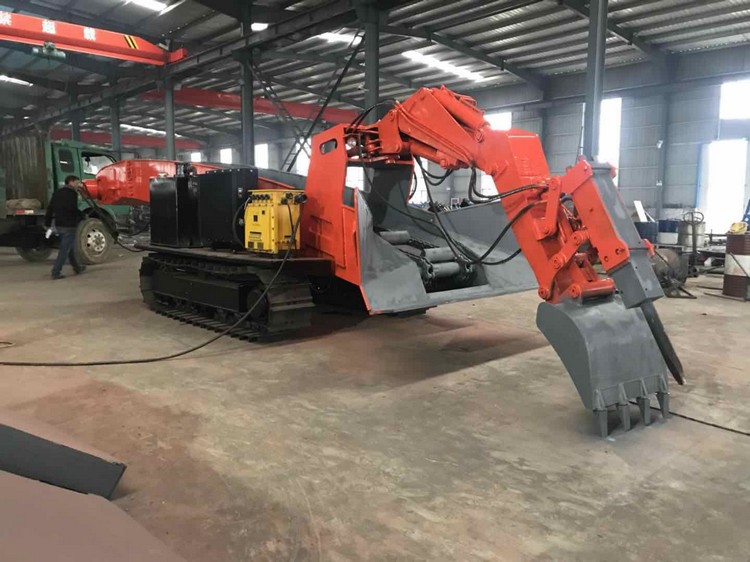

Contact Us Product CenterChina Coal ZWY Mini Mucking Loader is a kind of continuous production of high efficiency mining equipment, mainly used for the hole of the mining work in the narrow space, such as metal, non-metallic mineral, water diversion tunnels and so on, its function is to collect all the engineering material of gravel soils and conveying, loading, the machine by the crawler walking, driving force big, wide range of pick, whole section rock, leave no dead Angle, without artificial auxiliary clean face.
Main Parameter of|
Project |
40Type |
50Type |
60 Type |
80 Type |
120Type |
|
Loading capacity m³/h |
40 |
50 |
60 |
80 |
120 |
|
Digging width mm |
2000 |
2000 |
2200 |
2600 |
3000 |
|
Excavation Height mm |
1700 |
1850 |
2000 |
2300 |
2600 |
|
Excavation depth mm |
400 |
400 |
400 |
500 |
600 |
|
Digging distance mm |
1200 |
1320 |
1320 |
1400 |
1500 |
|
Unloading height mm |
≥1300 |
≥1300 |
≥1500 |
≥1500 |
≥1800 |
|
Unloading distance mm |
1400 |
1400 |
1500 |
1700 |
1900 |
|
Gradeability |
20 |
20 |
20 |
20 |
20 |
|
Belt speed m/min |
36 |
36 |
36 |
36 |
36 |
|
Walking speed km/h |
3 |
3 |
3 |
3 |
3 |
|
Ground clearance mm |
180 |
240 |
260 |
300 |
300 |
|
Tire spacing mm |
1100 |
1100 |
1200 |
1530 |
1530 |
|
Axle spacing mm |
1200 |
1200 |
1450 |
1600 |
1800 |
|
Working pressure Mpa |
12.5 |
12.5 |
12.5 |
12.5 |
|
|
Motor power kw |
11+4 |
11+4 |
11+4 |
11+4 |
11+4 |
|
Max entry size mm |
400*400 |
500*400 |
500*500 |
600*500 |
700*600 |
|
Walking slope° |
＜5 |
＜5 |
＜5 |
＜5 |
＜5 |
|
Working section m |
1.6*1.8 |
1.8*1.8 |
2.2*2.2 |
2.4*2.4 |
2.8*2.8 |
|
Dismentions mm |
4750*1250*1450 |
5000*1400*1500 |
5200*1500*1600 |
5600*1700*1800 |
6200*1900*2000 |
