Mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the sp

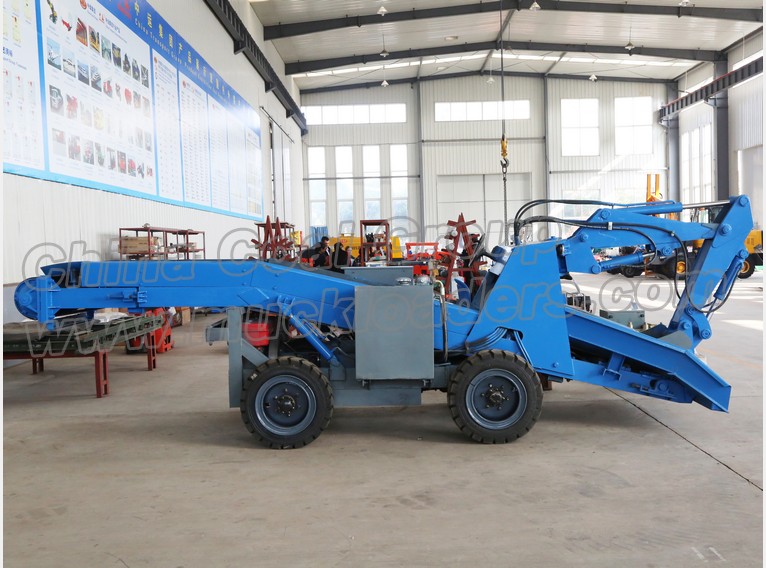

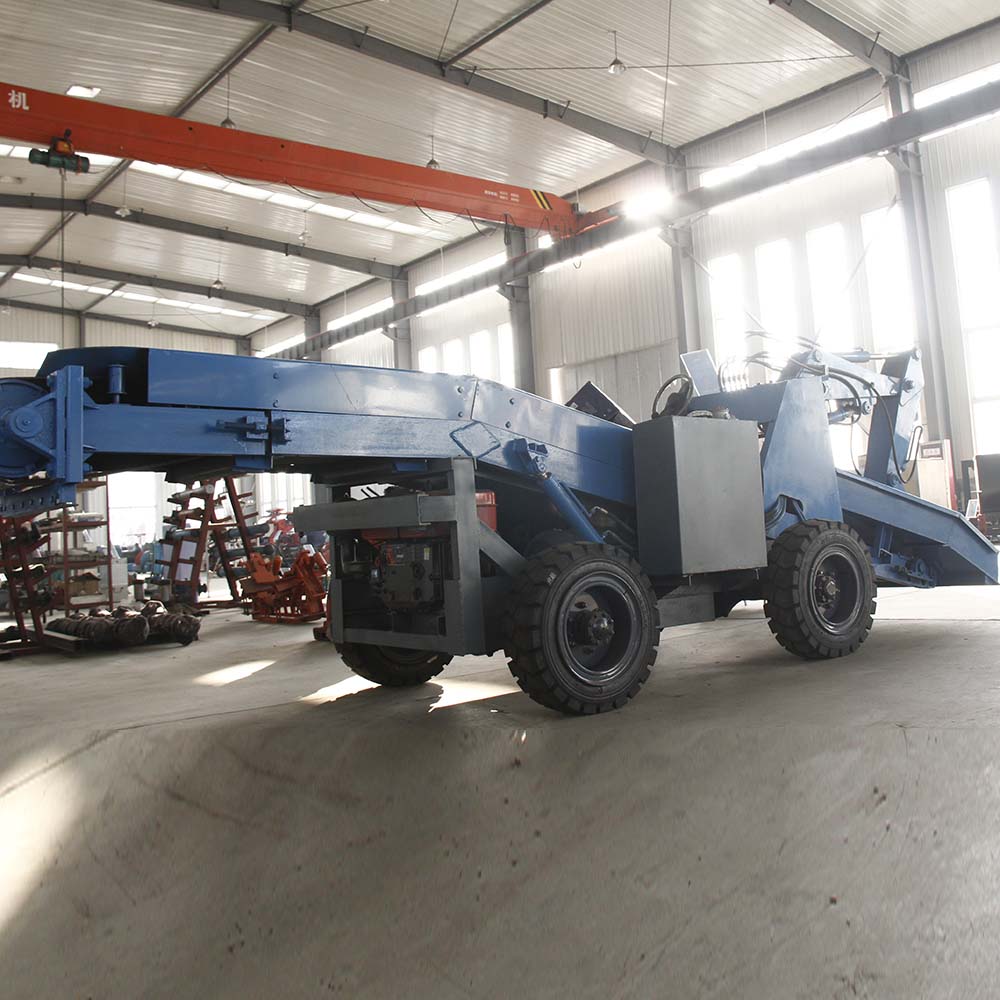

Contact Us Product CenterMucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.Wheeled slag machine wide range (from left to right range of up to 4.5 meters, up to 2.8 meters on the ground, the ground up to 0.8 meters) ,It can be full-face loading of gravel, leaving no dead ends, do not need to manually clean up Site, you can also digging on both sides of the roadway ditch.
Main Parameter of|
Specfication |
|
|
loading capacity |
≥50 m3/h |
|
Excavating distance |
1300mm |
|
Mining width |
2400 mm |
|
loading width |
≥2400mm |
|
Digging height |
1600mm |
|
digging depth |
210mm |
|
discharge height |
≥1350 |
|
ground clearance |
180 mm |
|
Loading length |
1800mm |
|
Axial distance |
1200mm |
|
Wheelbase(front/back wheel) |
1100 mm |
|
Tire minimum turning radius |
≥5 m |
|
gradeability |
≤8° |
|
Conveyor belt speed |
0.80±5% |
|
delivery capacity |
≥50 m3/h |
|
Loading mouth size |
≤400×450 mm2 |
|
traveling speed |
0.26±5% m/s |
|
rated working pressure |
12 Mpa |
|
Main motor power |
15 kw |
|
weight |
2450±5% |
|
dimension |
4750*1450*1450 |
