Hydraulic Mucking Machine /Mine Mucking Rock Loader /Tunnel Excavator With CE Certification

Mucking loader is also is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Hydraulic Mucking Machine /Mine Mucking Rock Loader /Tunnel Excavator With CE Certification

Mucking loader is also is also called excavating loader,   integrates multiple functions including excavation, conveying,  loading,  running,  Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.

Using electric hydraulic control system, contain five functions are hydraulic walking, mining acquisition , transportation, loading and bottom clearing. Our mucking loader has dualdrive device , electrical installation and diesel Installation. When it works in the mine , please use electric power, for the electric power is more environmental and safe. When it works out of the mine, Hydraulic oil tank can storage oil for a long continuous work.

Parameter of Hydraulic Mucking Machine /Mine Mucking Rock Loader /Tunnel Excavator With CE Certification

SPECIFICATIONS FOR MUCKING LOADER

Adaptive tunnel minimum fracture

1.8*2

m

Treatment capacity

60-80

t/h

Motor power

11+4

kw

Traveling speed

2-4.5

Kw/h

Maximum material dimension

600*500*450

mm

Wheel tread

1480

mm

wheel base

1500

mm

Rating working pressure

16

mpa

Big arm maximum rotation angle

±30

°

Adaptive tunnel gradient

≤15

°

External dimension

5200*1500*1600

mm

Total weight

3400

kg

Minimum turning radius

4

m

Digging width

2400

mm

Digging height

1700

mm

Belt speed

0.63

m/min

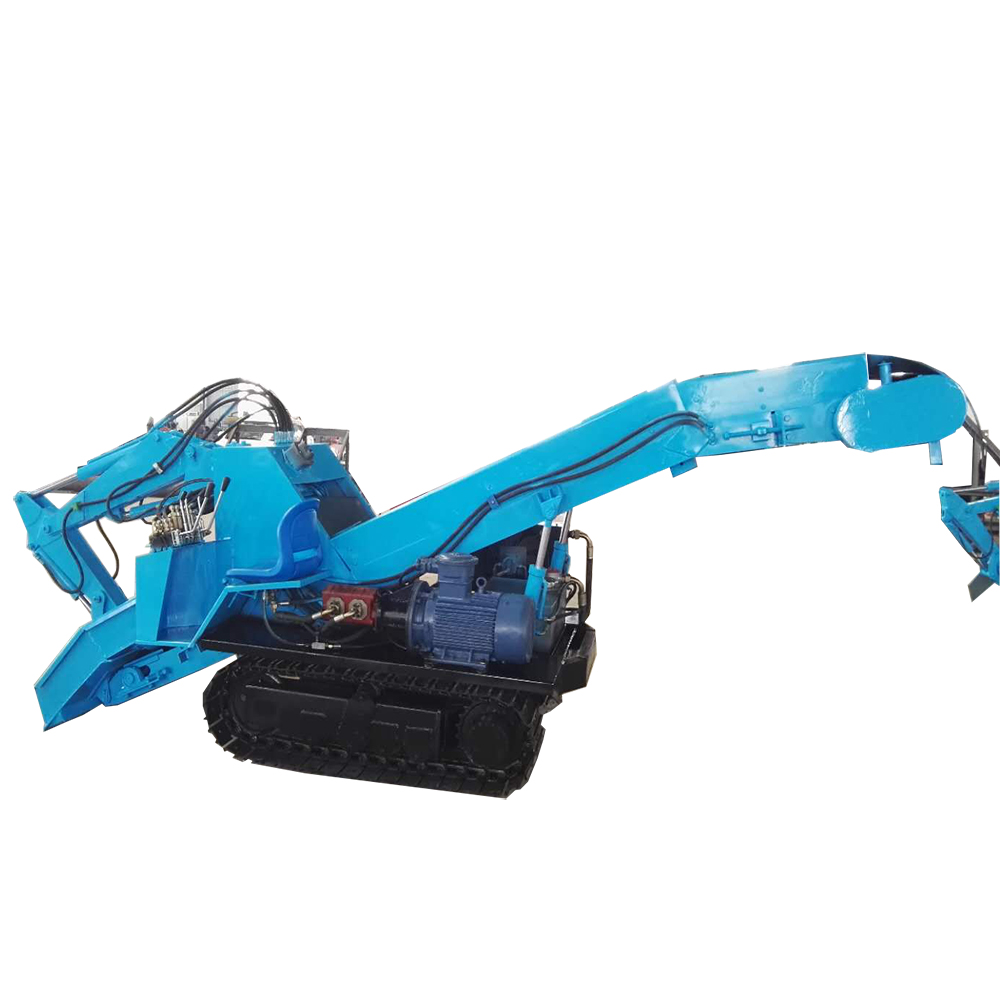

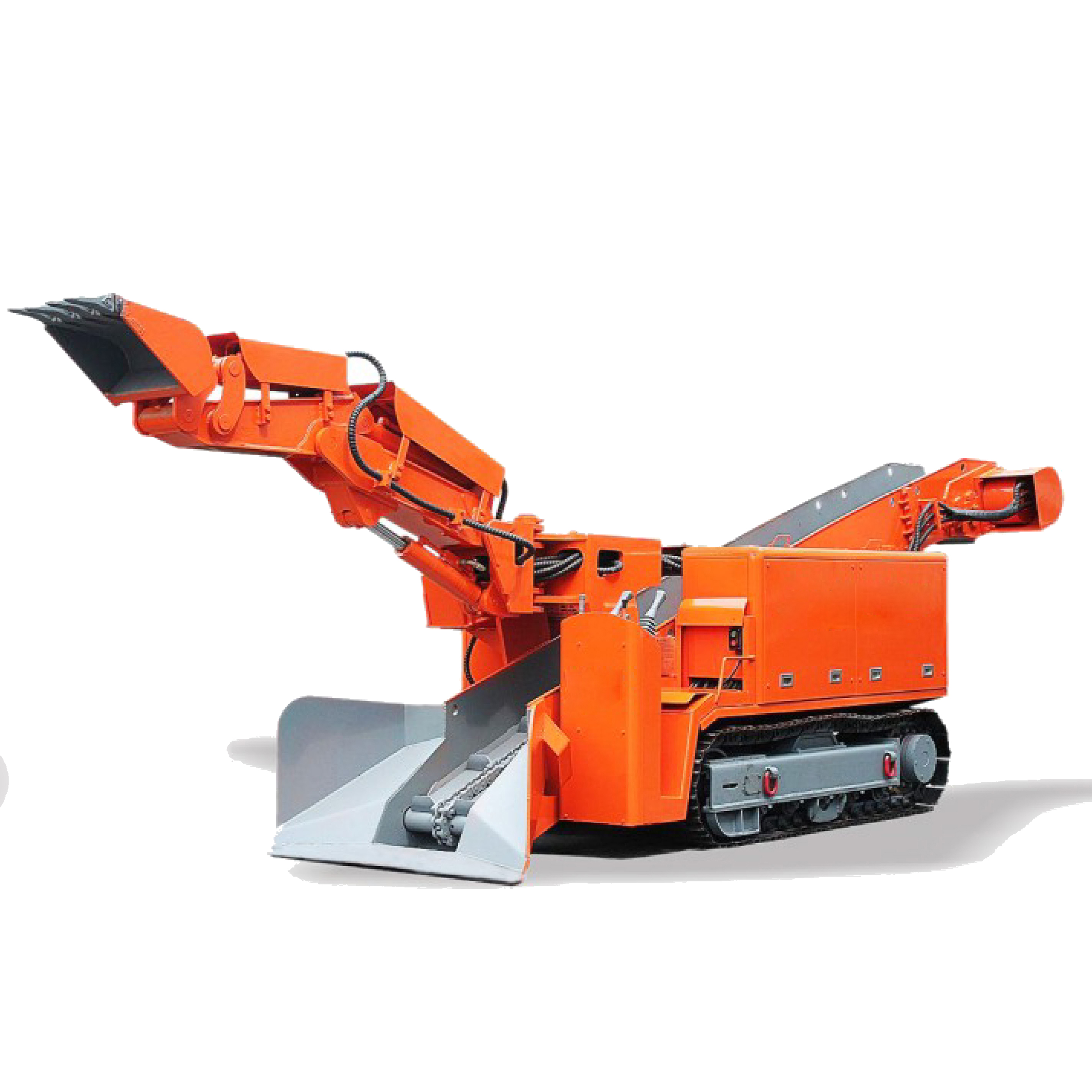

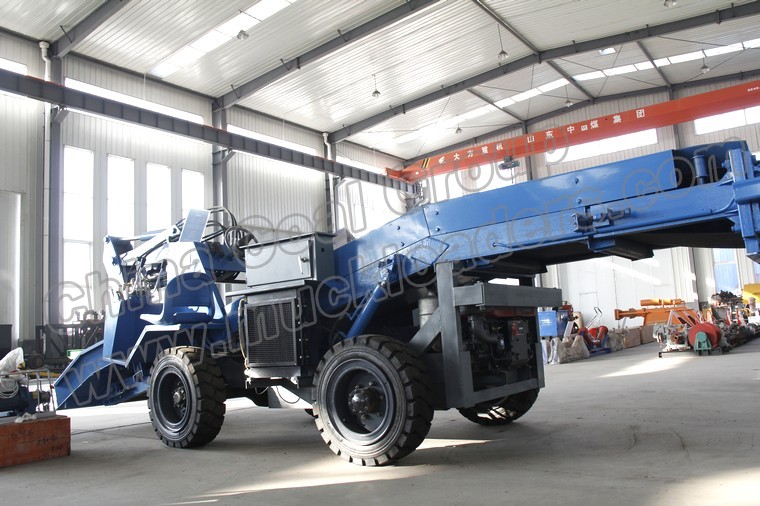

Pictures of Hydraulic Mucking Machine /Mine Mucking Rock Loader /Tunnel Excavator With CE Certification
