YZW Wheeled Belt Mining High Loading Capacity Mucking Loader

China Coal Group Specialized in all types mucking machine, rock mucking loader. Mucking rock loader is suitable for the construction machinery of tunnel excavation, mine engineering, water conservancy

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of YZW Wheeled Belt Mining High Loading Capacity Mucking Loader

China Coal Group Specialized in all types mucking machine, rock mucking loader. Mucking rock loader is suitable for the construction machinery of tunnel excavation, mine engineering, water conservancy engineering, small section diversion tunnel and mine slag (ore) machinery. The mucking rock loader is mainly used in some small scale phosphate mines with narrow production space. Collection and loading of gravel in non-explosive dangerous mines such as metal non-metallic mines.


1.Load sensing hydraulic priority to, stable and reliable, energy conservation and significant.
2.Durable, each gear ratio reasonable matching, reduce the power consumption.
3.Reduce the power consumption.
4.Simple structure and reliable performance.
5.semi-enclosed assembling,easy to maintain.

Parameter of YZW Wheeled Belt Mining High Loading Capacity Mucking Loader

Project

40Type

50Type

60 Type

80 Type

120Type

Loading capacity m3/h

40

50

60

80

120

Digging width mm

2000

2000

2200

2600

3000

Excavation Height mm

1700

1850

2000

2300

2600

Excavation depth mm

400

400

400

500

600

Digging distance mm

1200

1320

1320

1400

1500

Unloading height mm

≥1300

≥1300

≥1500

≥1500

≥1800

Unloading distance mm

1400

1400

1500

1700

1900

Gradeability

20

20

20

20

20

Belt speed m/min

36

36

36

36

36

Walking speed km/h

3

3

3

3

3

Ground clearance mm

180

240

260

300

300

Tire spacing mm

1100

1100

1200

1530

1530

Axle spacing mm

1200

1200

1450

1600

1800

Working pressure Mpa

12.5

12.5

12.5

12.5


Motor power kw

11+4

11+4

11+4

11+4

11+4

Max entry size mm

400*400

500*400

500*500

600*500

700*600

Walking slope°

<5

<5

<5

<5

<5

Working section m

1.6*1.8

1.8*1.8

2.2*2.2

2.4*2.4

2.8*2.8

Dismentions mm

4750*1250*1450

5000*1400*1500

5200*1500*1600

5600*1700*1800

6200*1900*2000

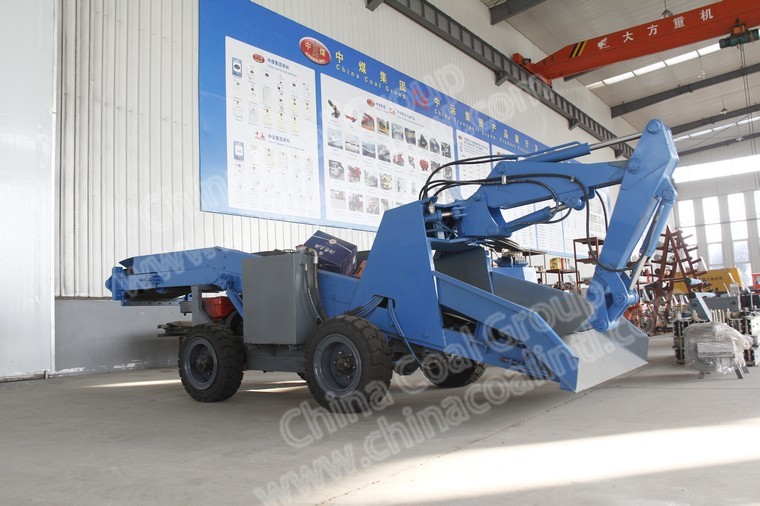

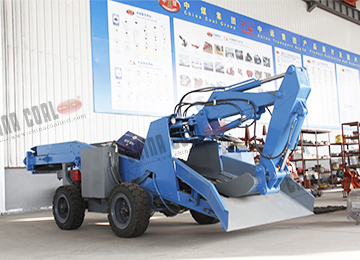

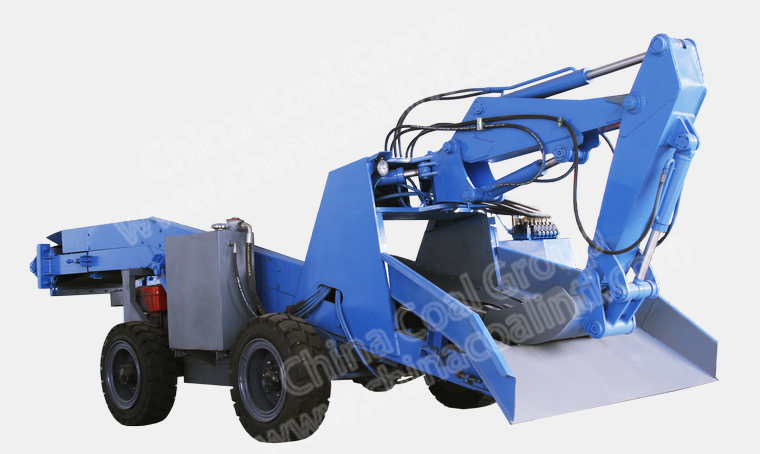

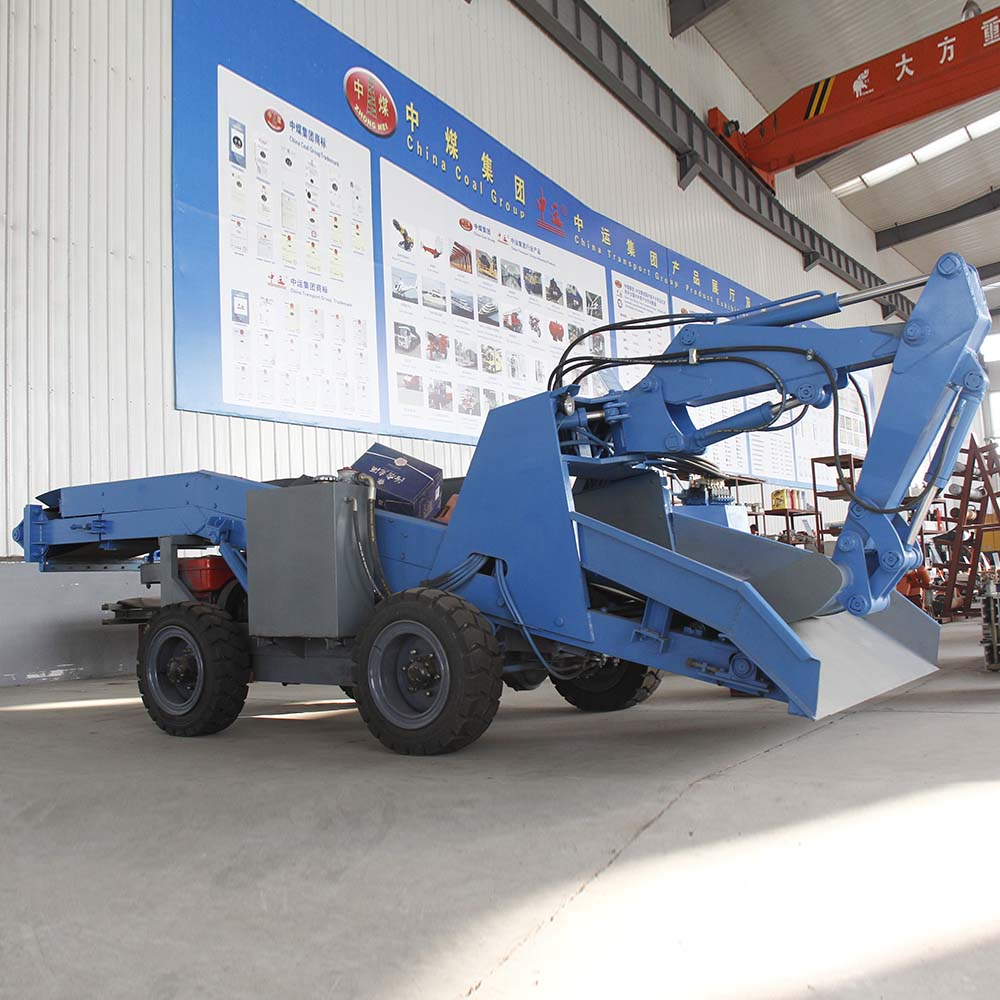

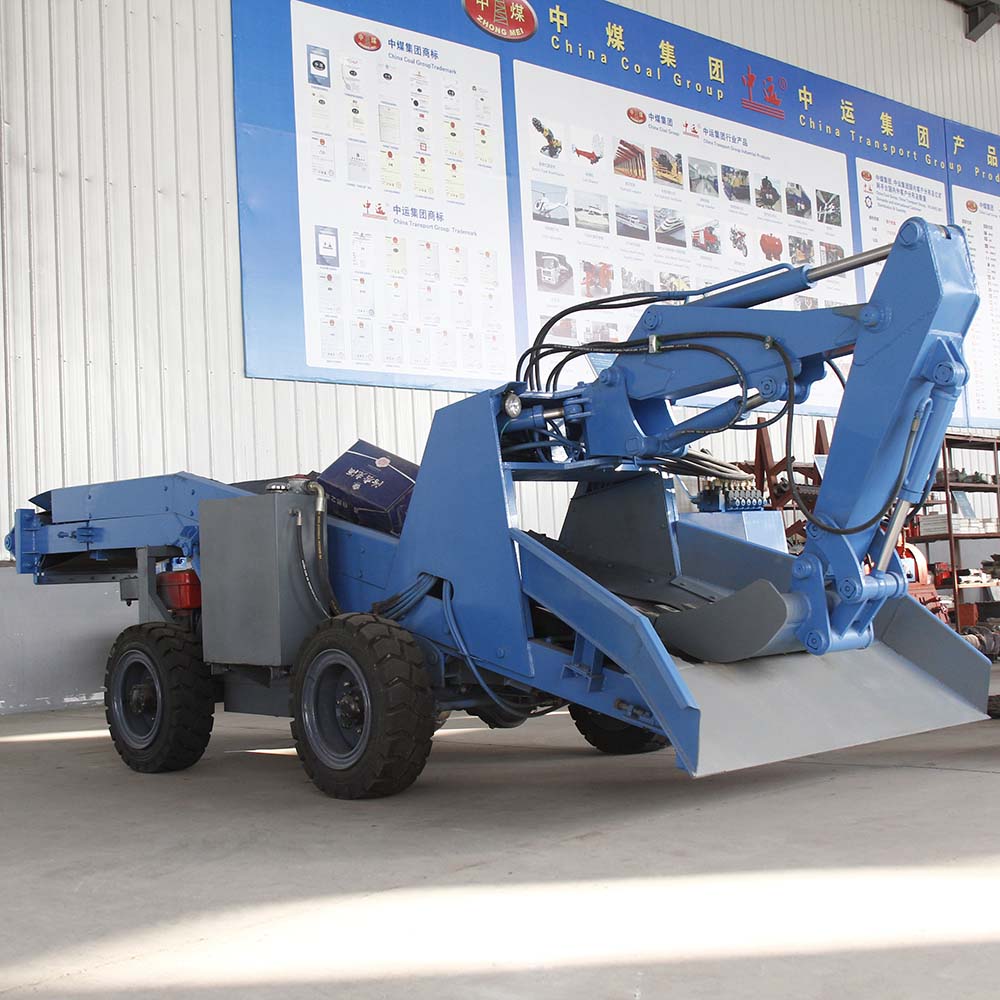

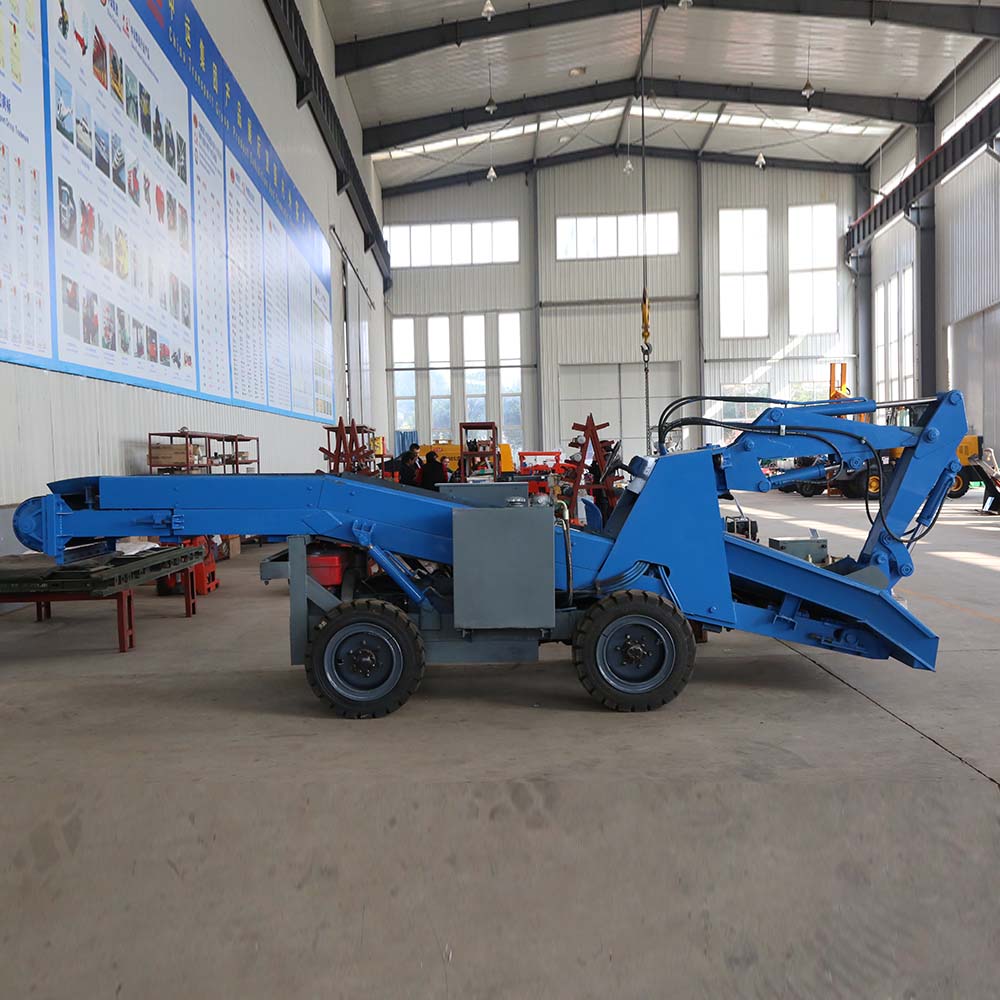

Pictures of YZW Wheeled Belt Mining High Loading Capacity Mucking Loader
