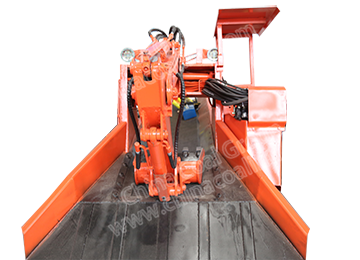

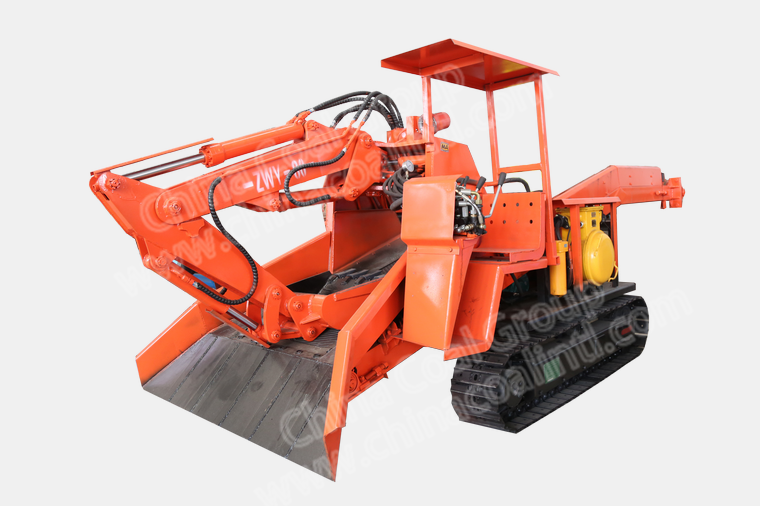

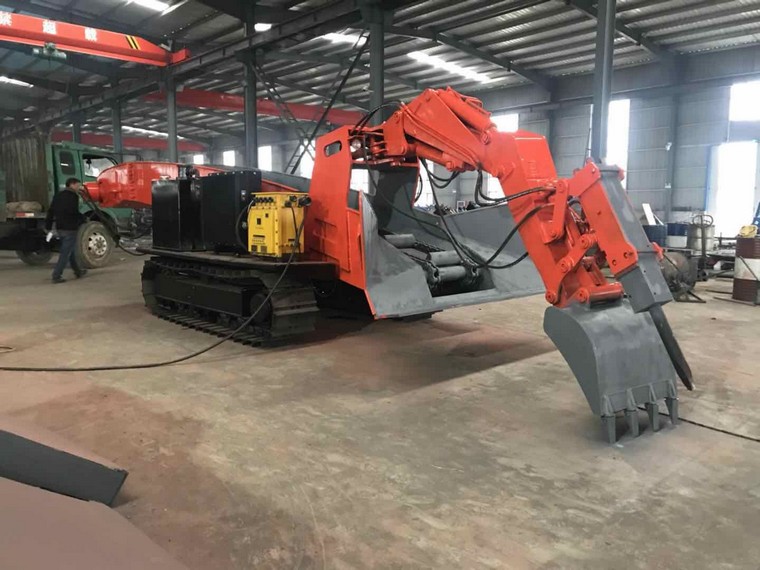

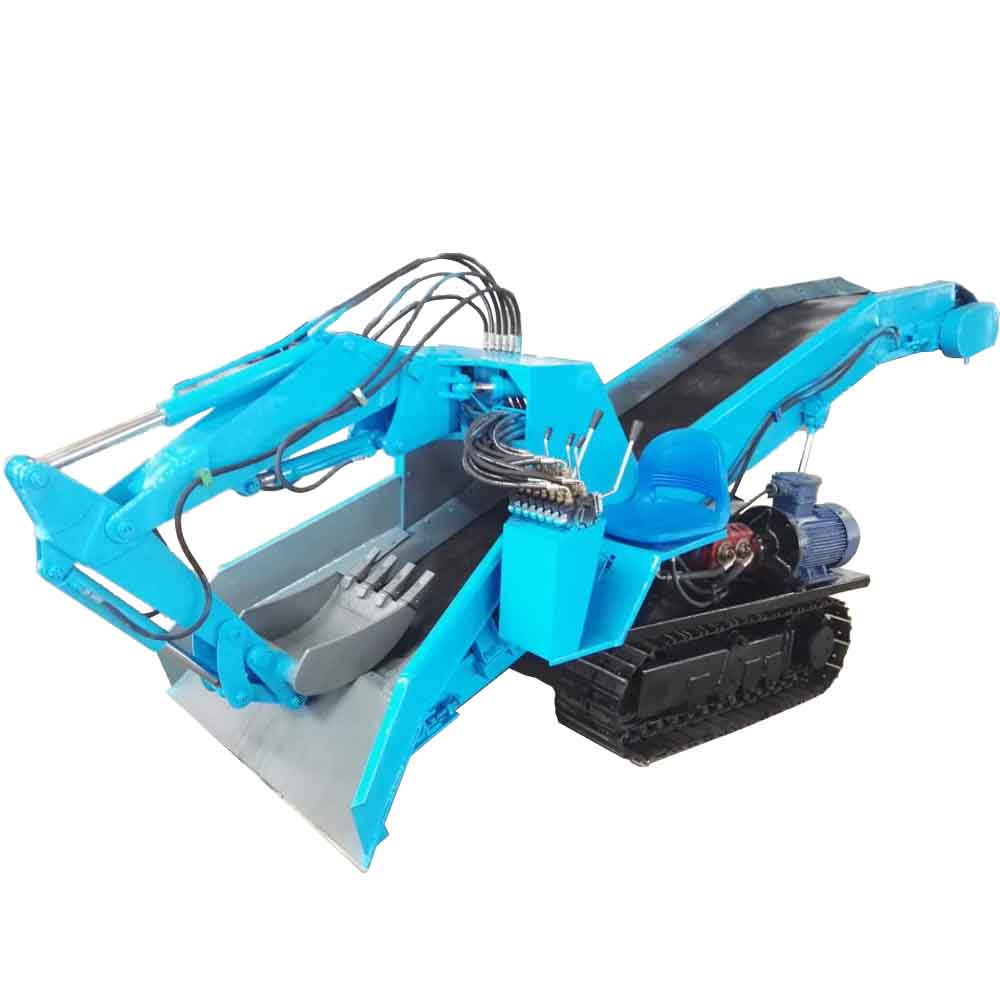

ZWY-150/45L crawler type slope type excavator loader (common name:muking loader) is a continuous production of high efficiency mining equipment. It is mainly used for loading operations in coal mine r
Contact Us Product CenterThe Mucking Rock Loader relies on propulsion to shovel the rock and pour the stone into its own scraper conveyor through the bucket. The conveyor unloads the rock from the tail into the side-discharging mine car, the bucket, the belt conveyor, the shuttle mine car, the dump truck. Wait for other reloading equipment. At the same time, the backhoe can be used to pick up the rock in the distance, or the bucket can be used to clean the working face and the section and the ditch.
The main features of the Mucking loader: electric full hydraulic control system, electric system adopts step-down starting mode, suitable for long tunnel working conditions; hydraulic system optimization design, main action adopts pilot valve control, easy and simple operation, stable and no impact, draw excavation Mature design concept and configuration, imported components, multi-channel precision oil filter, air-cooled radiator; can be installed in full section rock, no dead angle, no need to manually clean the working surface; transport slag adopts chain scraper type, smooth operation It has strong slagging ability and semi-enclosed assembly method for easy maintenance.
|
Protect |
ZWY-120/55L |
ZWY-150/55L |
|
Excavation width |
5900mm |
6870mm |
|
Excavation distance |
2470mm |
2857mm |
|
Excavation height |
3330mm |
3563mm |
|
Excavation depth |
800mm |
915mm |
|
Unloading height |
2100mm |
2200mm |
|
Mini loading height |
1760mm |
1750mm |
|
Working arm max angle of rotation |
3170mm |
3170mm |
|
Adapt to the roadway section |
±55° |
±55° |
|
Loading capacity |
120m3 |
150m3 |
|
Power |
55 kw |
55kw |
|
total weight |
13600kg |
15300kg |
|
Walking speed |
0.9km/h , 1.8km/h |
0.9km/h 1.8km/h |
|
Applicable roadway slope |
≤32° |
≤32° |
|
Mini turning radius |
≥6m |
≥7m |
|
Operation method |
Hydraulic control |
Hydraulic control |
|
Scraper chain speed |
34m/min |
34m/min |
|
Fuel tank capacity |
260L |
260L |
|
Max working pressure |
30Mpa |
30Mpa |
|
Dimensions(Length * Width * Height) |
9200*2100*2350mm(Transportation status) |
9500*2360*2450mm |
|
11080*2100*2813mm(Working status) |
11700*2360*2870mm |
