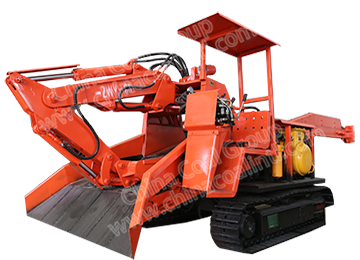

ZWY-160 Tunnel Mucking Loader

ZWY-160 Tunnel Mucking Loader

Date:2019-11-06     Label:

Tunnel Mucking Loader

Mining Excavation Loader

ZWY Loader

ZWY-160 Tunnel Mucking Loader for flat roads also name: (mucking machine) is a high-efficiency mining equipment for continuous production.ZWY-160 Tunnel Mucking Loader is mainly used for loading opera

Contact Us Product Center
Introduction of

ZWY-160 Tunnel Mucking Loader

ZWY-160 Tunnel Mucking Loader for flat roads also name: (mucking machine) is a high-efficiency mining equipment for continuous production.ZWY-160 Tunnel Mucking Loader is mainly used for loading operations in coal mine rock lanes, semi-coal rock roadways, mine main road tunneling and diversion tunnels, tunnel construction and defense tunnel construction. It is suitable for roadways with a section of 3.4×3.4 meters and a slope of ≤15°.

The ZWY-160 Tunnel Mucking Loader relies on propulsion to shovel the rock and pour the stone into its own scraper conveyor through the bucket. The conveyor unloads the rock from the tail into the side-discharging mine car, the bucket, the belt conveyor, the shuttle mine car, the dump truck. Wait for other reloading equipment. At the same time, the backhoe can be used to pick up the rock in the distance, or the bucket can be used to clean the working face and the section and the ditch.

The main features of the ZWY-160 Tunnel Mucking Loader:

1.Electric full hydraulic control system, electric system adopts step-down starting mode, suitable for long tunnel working conditions;

2.Hydraulic system optimization design, main action adopts pilot valve control, easy and simple operation, stable and no impact, draw excavation Mature design concept and configuration, imported components, multi-channel precision oil filter, air-cooled radiator;

3.Tunnel Mucking Loader can be installed in full section rock, no dead angle, no need to manually clean the working surface;

4.Tunnel Mucking Loader has transport slag adopts chain scraper type, smooth operation It has strong slagging ability and semi-enclosed assembly method for easy maintenance.

Main Parameter of

ZWY-160 Tunnel Mucking Loader

Product

Unit

Parameter

Technical Productivity

m3/h

160

Max Excavation Heoght

mm

3390

Max Digging Width

mm

4850


Max  Excavation Depth

mm

720

Max Digging Power

T

5

Adapt th the smallest size

m

3.0x3.0

Climbing Ability


30

Clearance From The Ground

mm

300

Grounding Pressure

Mpa

0.056

Motor Power

KW

55

Fuel Tank Capacity

L

360

Total Weight

kg

11500

Walking Speed

Km/h

0.63

Unloading Distance

mm

3240

Unloading Height

mm

1700-2100

Rated Working Pressure

Mpa

10

Dimension(Length*Width*Height)

mm

10100x1900x3010

8640x1900x2680

Notice:The parameter for reference only

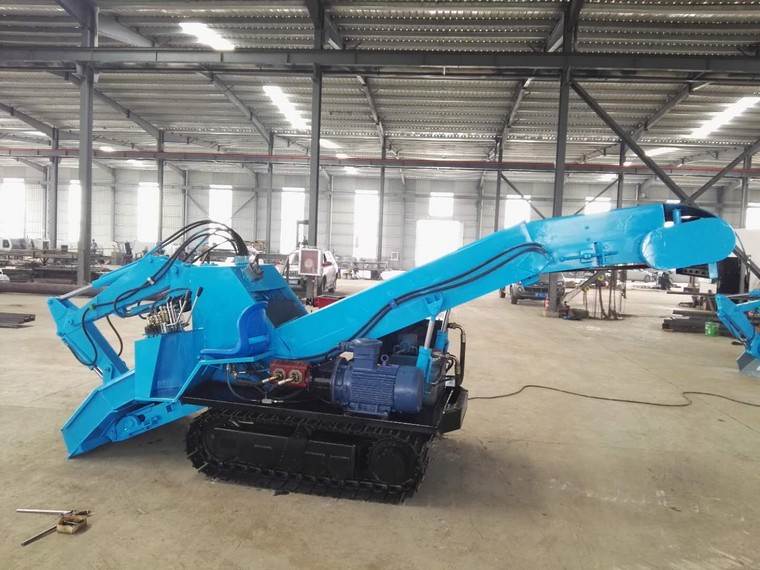

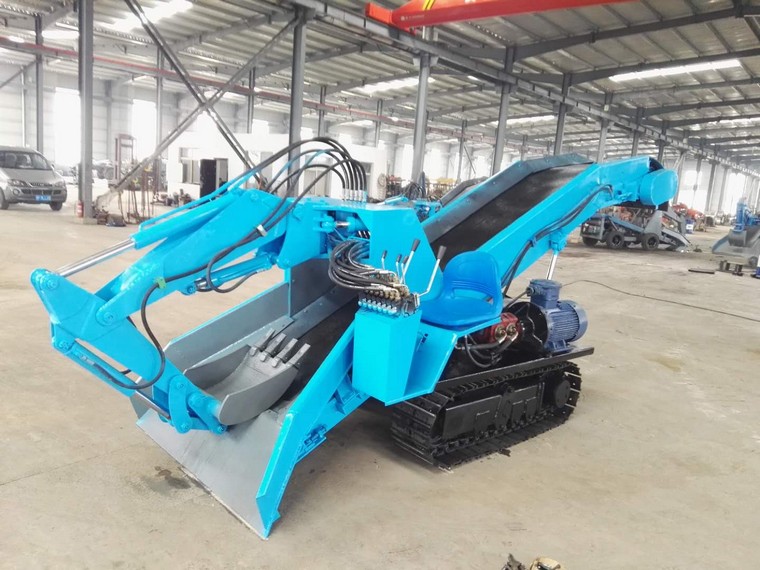

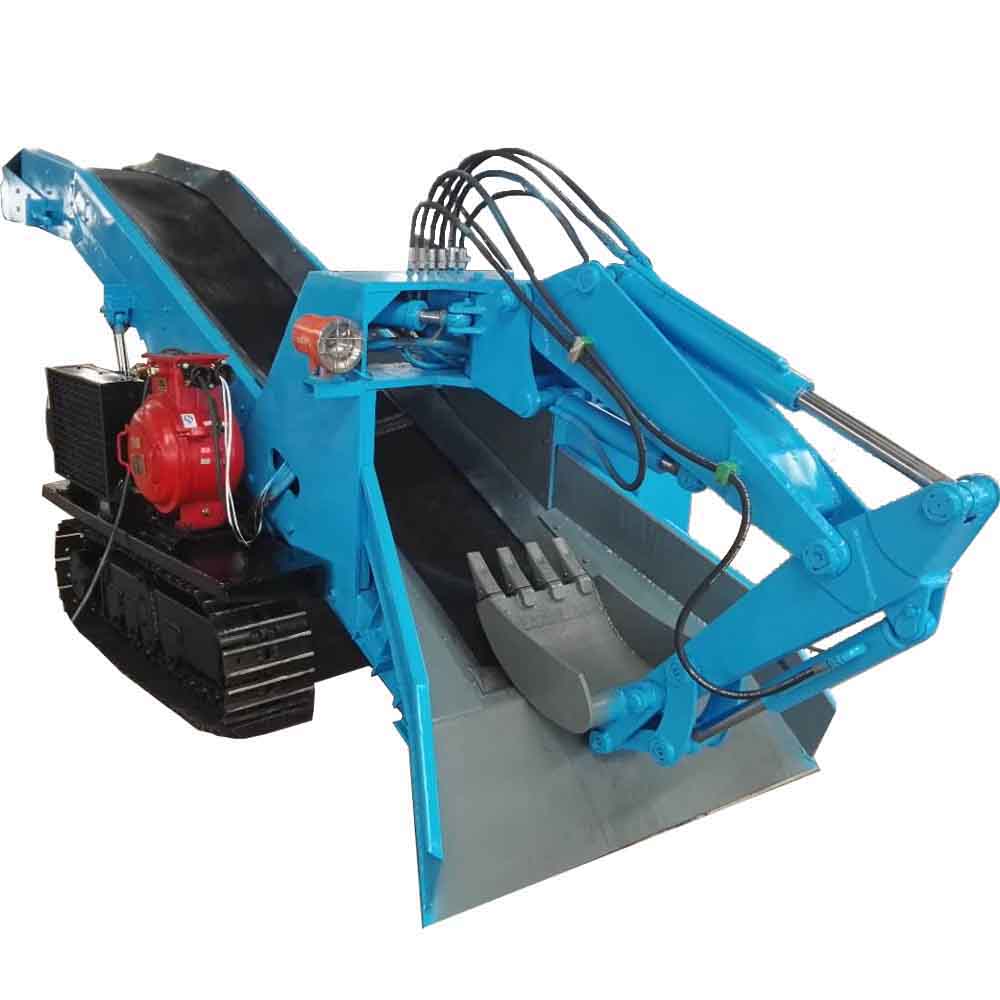

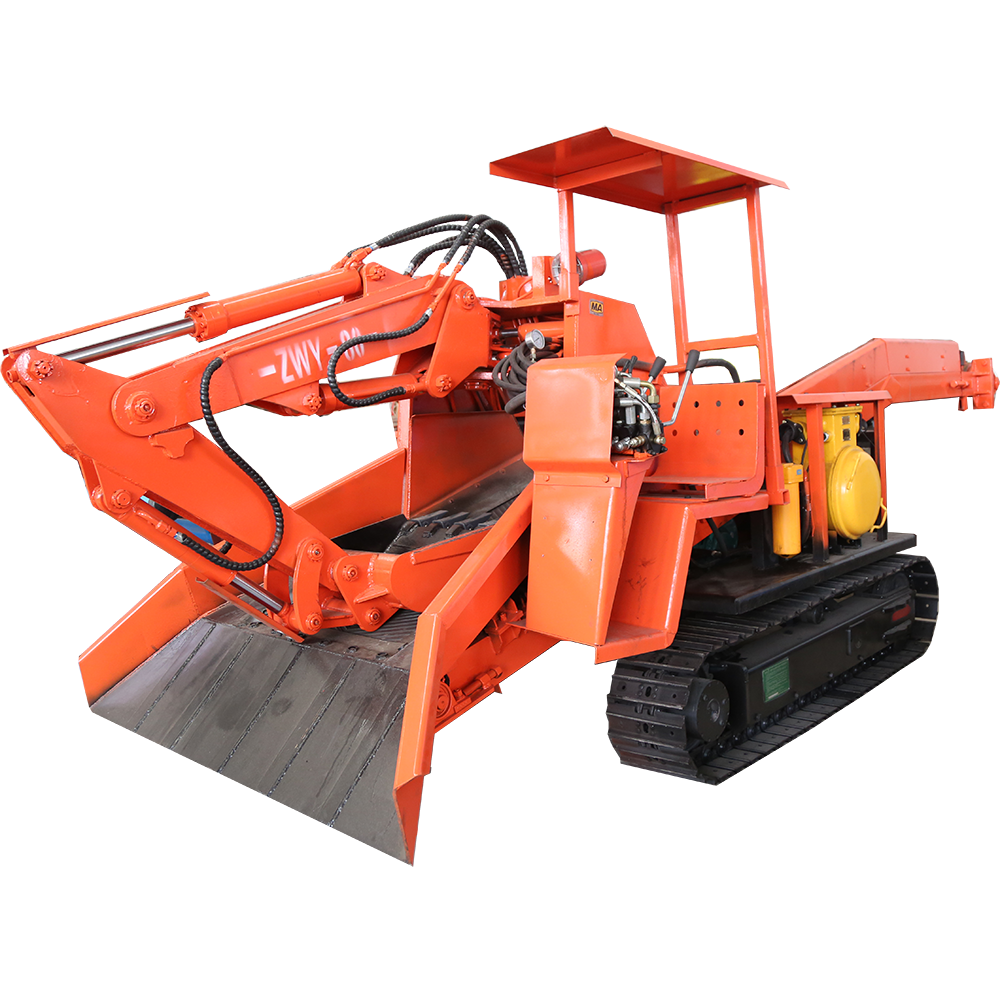

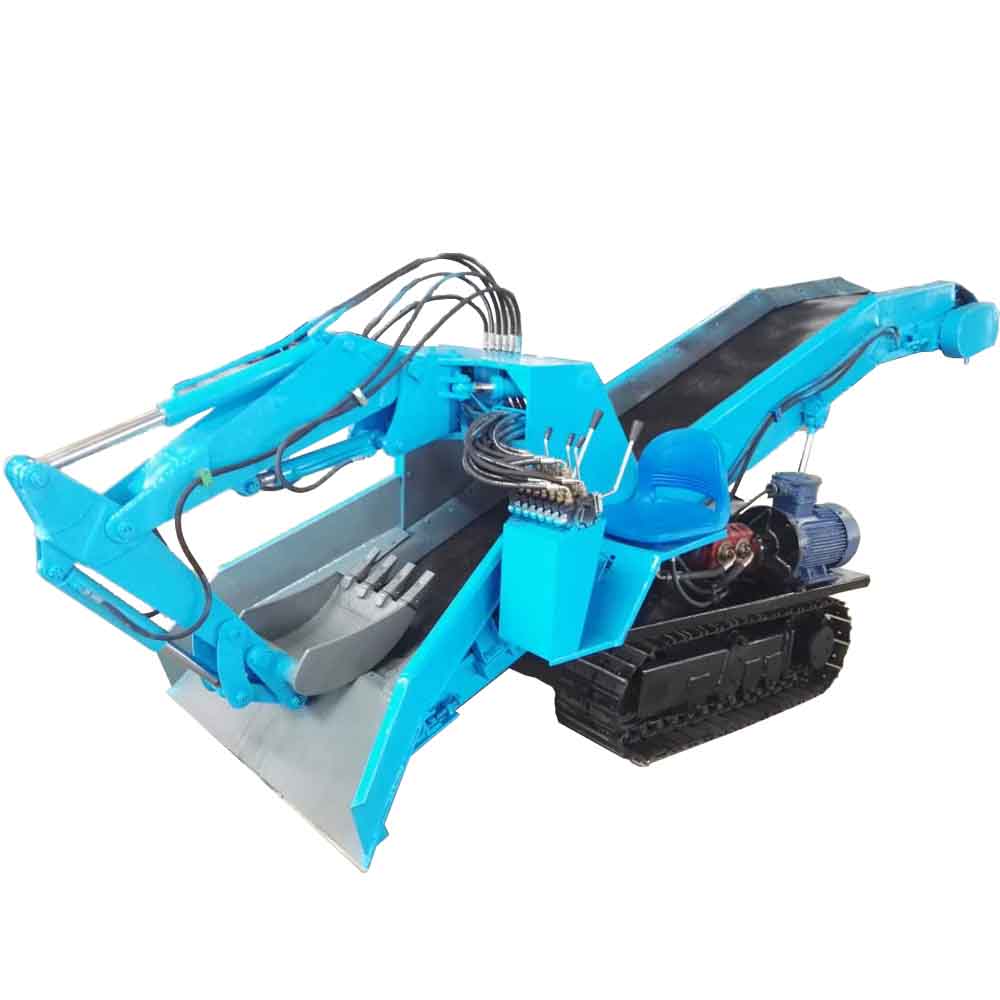

PHOTOS OF

ZWY-160 Tunnel Mucking Loader

ZWY-160 Tunnel Mucking Loader
ZWY-160 Tunnel Mucking Loader
PHOTOS OF

ZWY-160 Tunnel Mucking Loader
