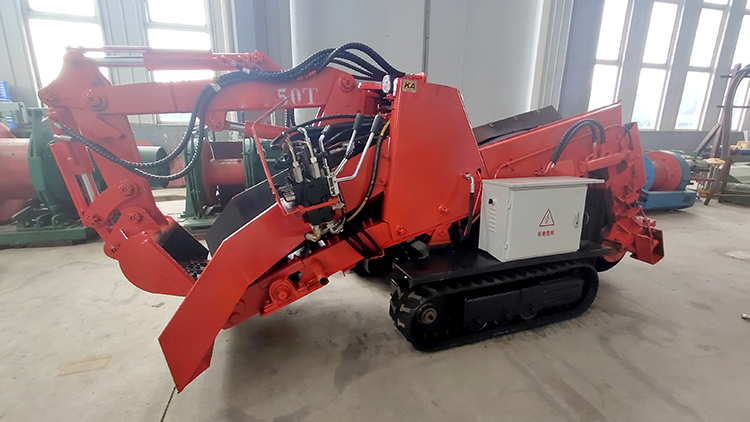

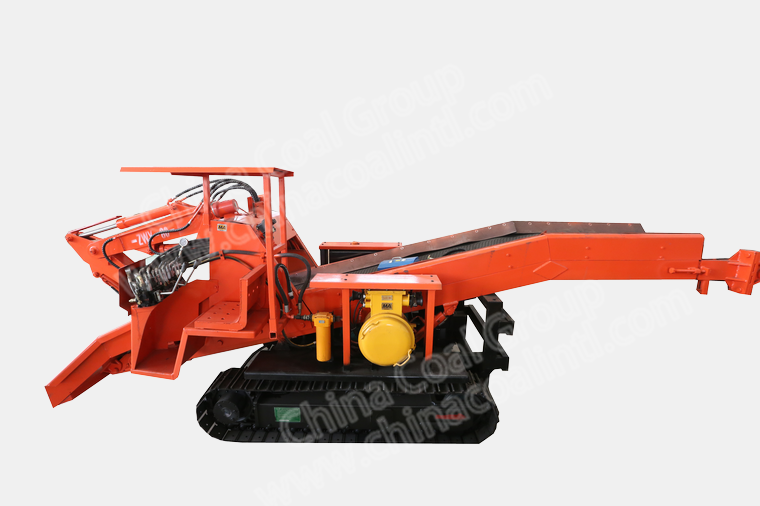

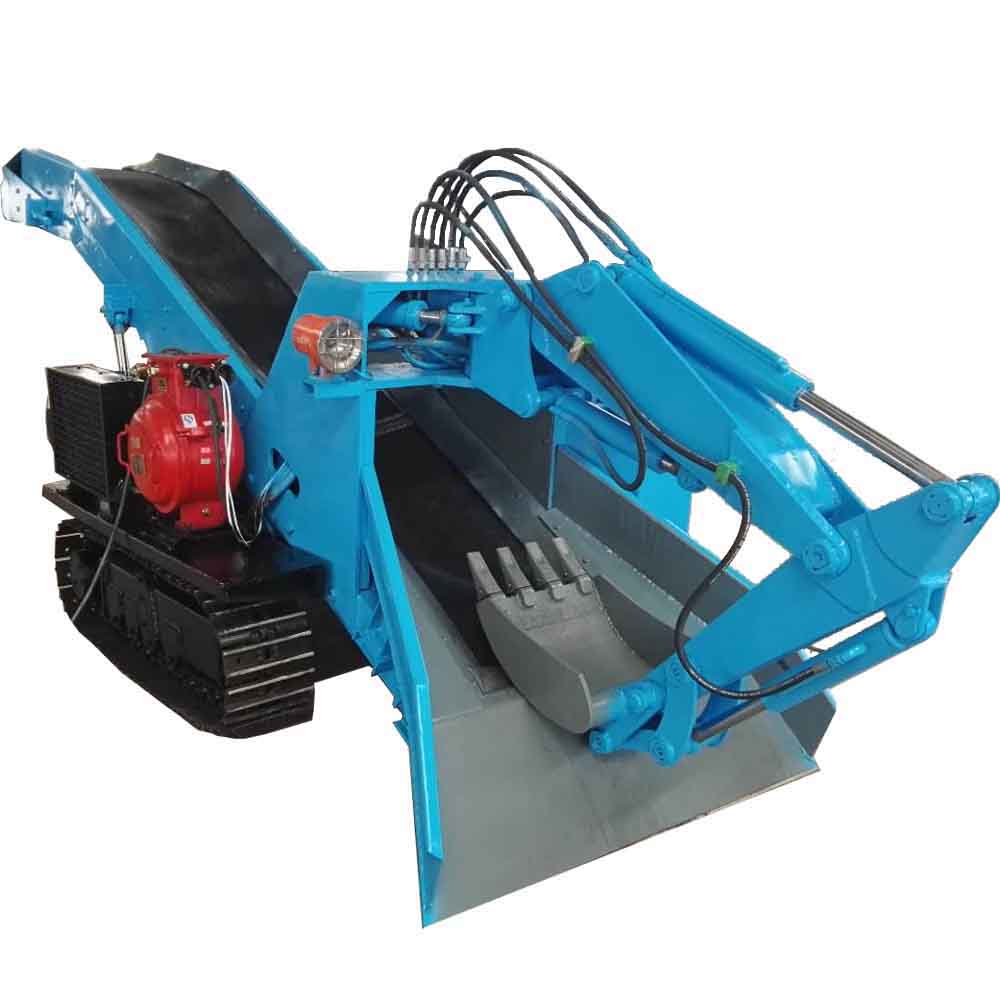

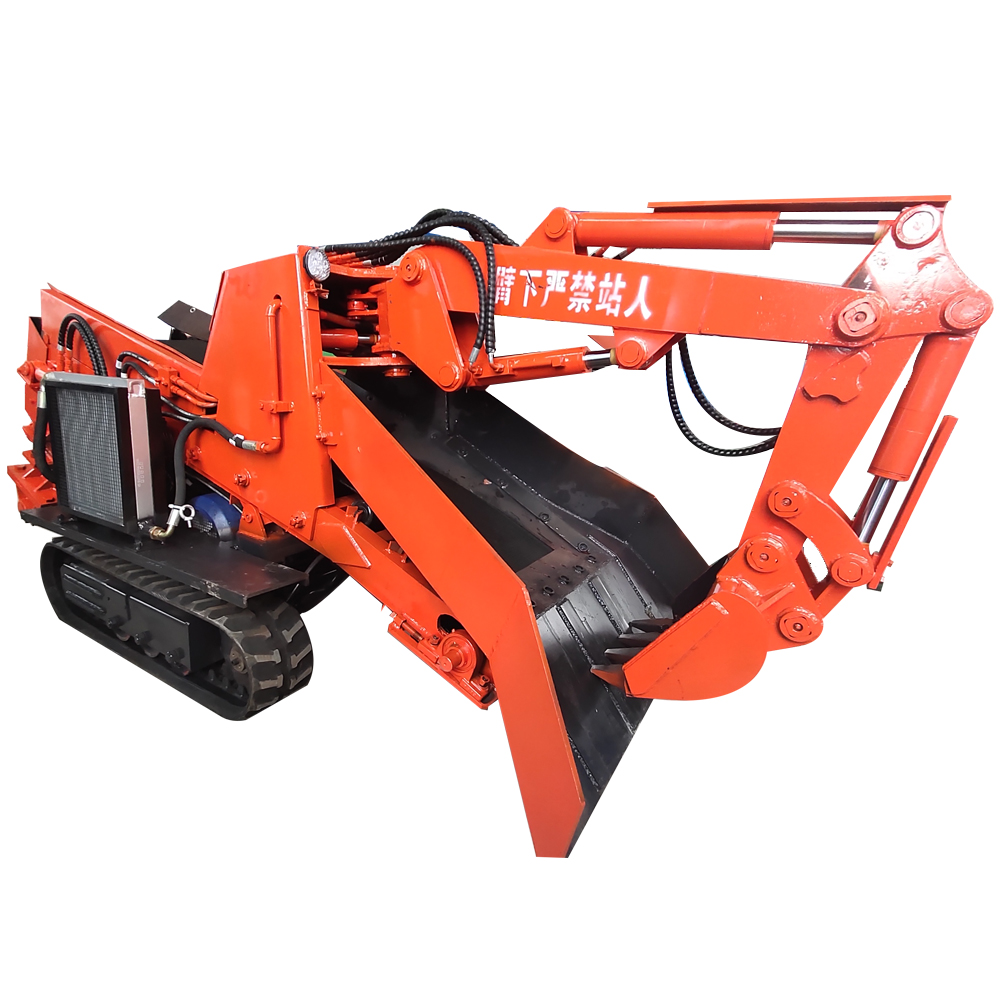

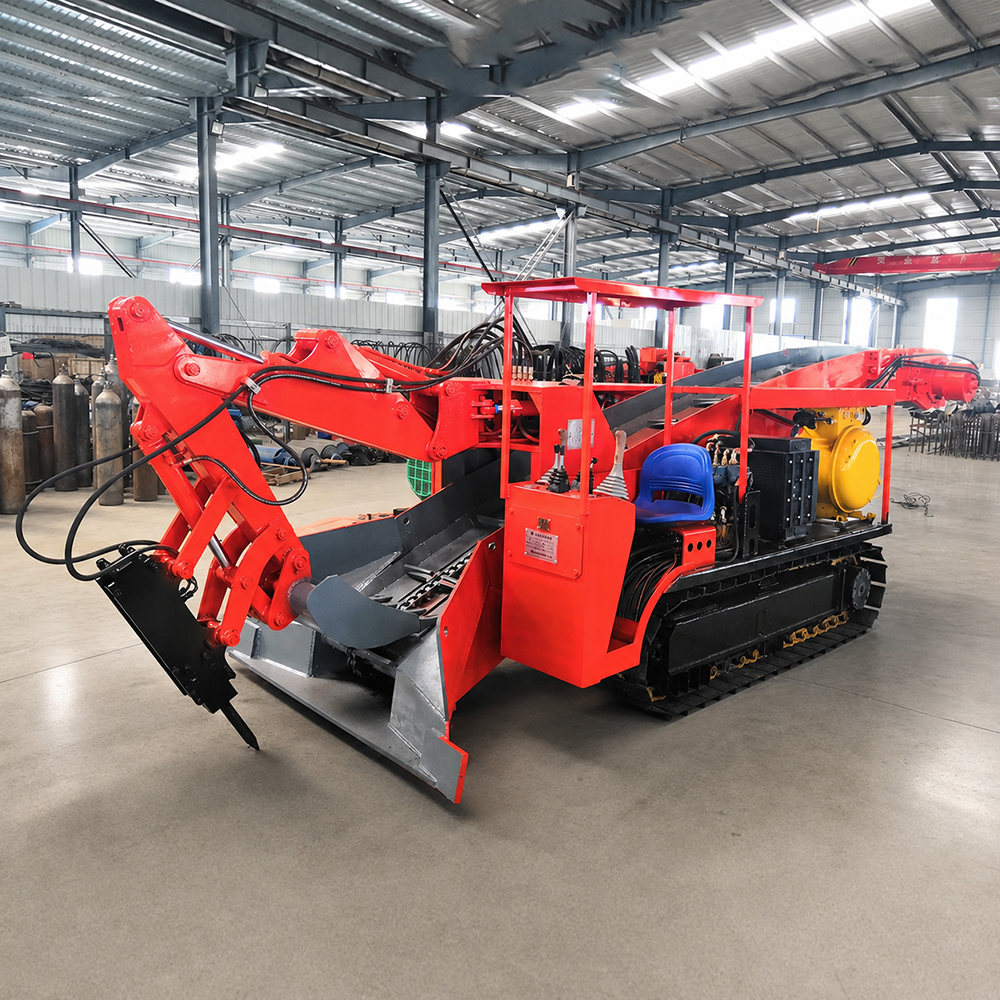

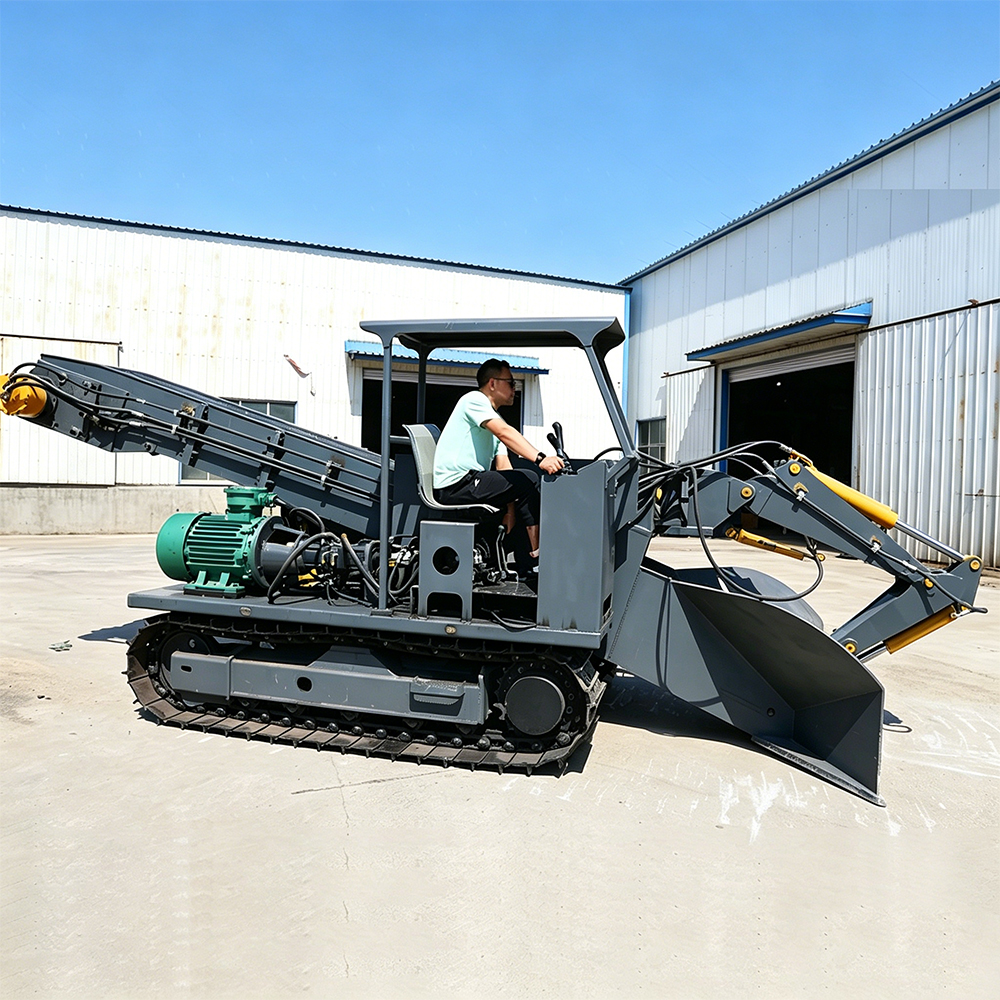

ZWY-220 mucking loader for flat roads also name: mucking machine) is a high-efficiency mining equipment for continuous production. The Mucking loader is mainly used for loading operations in coal mine
Contact Us Product CenterZWY-220 mucking loader for flat roads also name: mucking machine) is a high-efficiency mining equipment for continuous production. The Mucking loader is mainly used for loading operations in coal mine rock lanes, semi-coal rock roadways, mine main road tunneling and diversion tunnels, tunnel construction and defense tunnel construction. It is suitable for roadways with a section of 3.4×3.4 meters and a slope of ≤15°.
The mucking machine relies on propulsion to shovel the rock and pour the stone into its own scraper conveyor through the bucket. The conveyor unloads the rock from the tail into the side-discharging mine car, the bucket, the belt conveyor, the shuttle mine car, the dump truck. Wait for other reloading equipment. At the same time, the backhoe can be used to pick up the rock in the distance, or the bucket can be used to clean the working face and the section and the ditch.
The main features of the equipment: electric full hydraulic control system, electric system adopts step-down starting mode, suitable for long tunnel working conditions; hydraulic system optimization design, main action adopts pilot valve control, easy and simple operation, stable and no impact, draw excavation Mature design concept and configuration, imported components, multi-channel precision oil filter, air-cooled radiator; can be installed in full section rock, no dead angle, no need to manually clean the working surface; transport slag adopts chain scraper type, smooth operation It has strong slagging ability and semi-enclosed assembly method for easy maintenance.
Main Parameter of|
Product |
Unit |
Parameter |
|
Technical Productivity |
m3/h |
220 |
|
Max Excavation Height |
mm |
4730 |
|
Max Digging Width |
mm |
6500 |
|
Max Excavation Depth |
mm |
1000 |
|
Max Digging Power |
T |
5 |
|
Adapt th the smallest size |
m |
3.5x3.5 |
|
Climbing Ability |
|
30 |
|
Clearance From The Ground |
mm |
300 |
|
Grounding Pressure |
Mpa |
0.056 |
|
Motor Power |
KW |
75 or 55 |
|
Fuel Tank Capacity |
L |
360 |
|
Tital Weight |
kg |
15500 |
|
Walking Speed |
km/h |
0.63 |
|
Unloading Distance |
mm |
3640 |
|
Unloading Height |
mm |
1900-2600 |
|
Rated Working Pressure |
Mpa |
10 |
|
Dimension(Length*Width*Height) |
mm |
13500x2200x3680 |
|
11500x2200x2680 |
||
|
Notice:The parameter for reference only |
||
