ZMAW80 Tunnel Mucking Loader – Compact Power for Extreme Mining Conditions

Introduction of

ZMAW80 Tunnel Mucking Loader – Compact Power for Extreme Mining Conditions

The ZMAW80 electric tunnel mucking machine is a heavy-duty mucking rock loader designed for 24/7 continuous operation in narrow, low-ceiling, and dusty environments. As a tire-type tunnel mucking loader, it combines digging, collecting, loading, and clearing in one agile machine—outperforming traditional crawler mucking loader models in confined spaces.

Key Advantages:

Higher Flexibility – Four-wheel drive and 76° turning angle make it far more maneuverable than a standard crawler mucking loader, perfect for tunnels, diversion canals, and basements.

Tough & Green – Electric-powered, low noise, zero exhaust emissions. Meets modern environmental standards while working in harsh conditions.

Rugged Build – Weighs ≈3100 kg with 240 mm ground clearance. Handles max material size 450×700×450 mm.

Specs at a Glance (ZMAW80):

Loading capacity: 80 m³/hour

Walking speed: 3–6 km/h

Conveying slope: up to 24°

Loading height: 2200 mm

Power consumption: 21 kw/h

Whether you need a mini mucking loader for small-scale jobs or a full-size mucking rock loader for high-output mines, the ZMAW80 delivers. For even larger demands, we offer custom models from 30 to 160 m³/h.

Upgrade your underground operation with a smarter, cleaner tunnel mucking machine.

Main Parameter of

ZMAW80 Tunnel Mucking Loader – Compact Power for Extreme Mining Conditions

Item	Unit	Data
Machine length	mm	5800
Machine width	mm	1700
Machine height	mm	1550
Axial distance	mm	1550
wheelbase	mm	1480
The size of the maximum material (long * height * width)	mm	450*700*450
Walk away from the ground	mm	240
Machine weight	kg	≈3100
Material maximum lift height	mm	2100
Loading height	mm	2200
Loading car length	mm	2200
Hopper height	mm	2000
power consumption	kw/h	21
Turn angle	(º)	76
Walk speed	km/h	3—6
Grilled machine efficiency	m³/h	80
Conveying slope	(º)	24
Stretching length	mm	≈7300
Material length	mm	1800

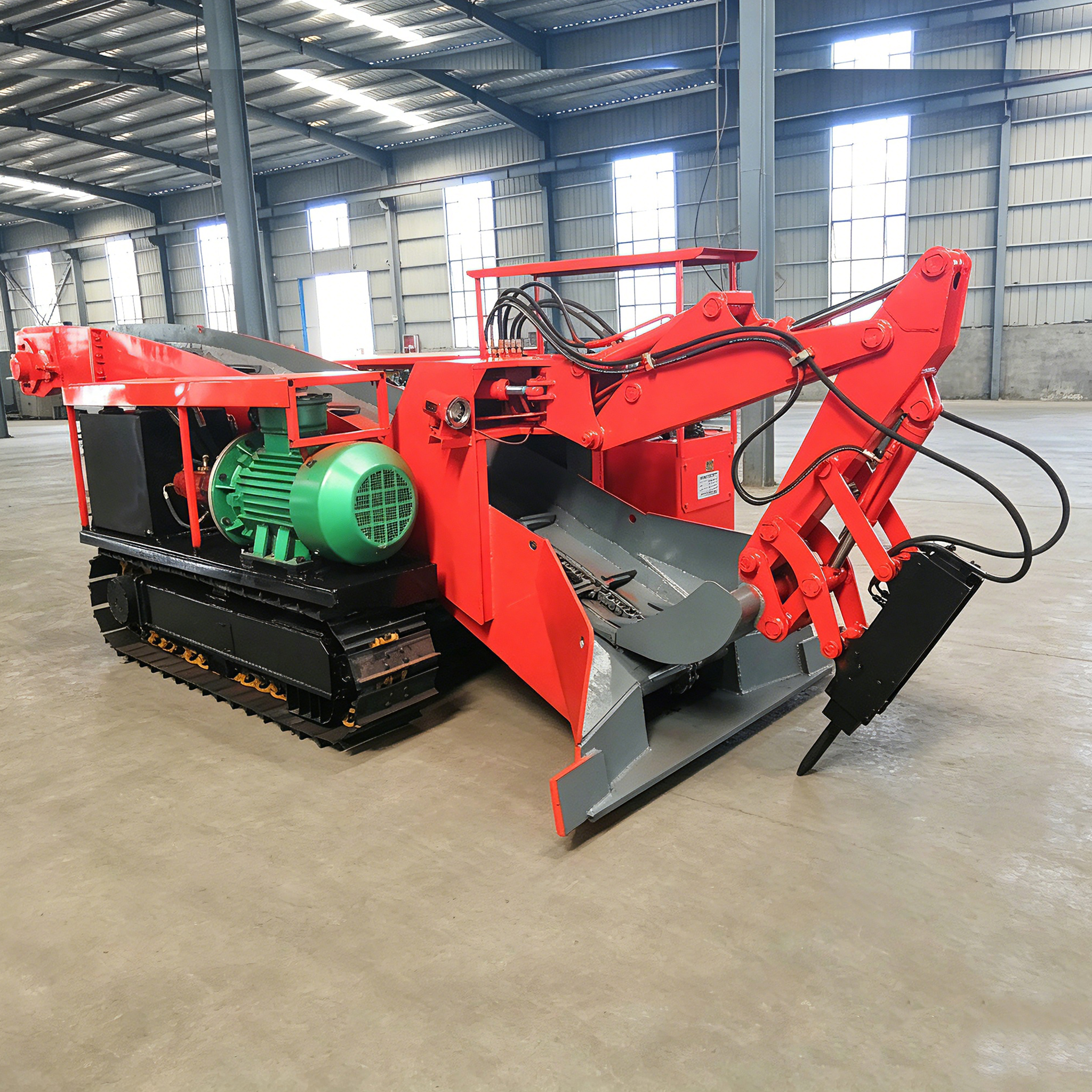

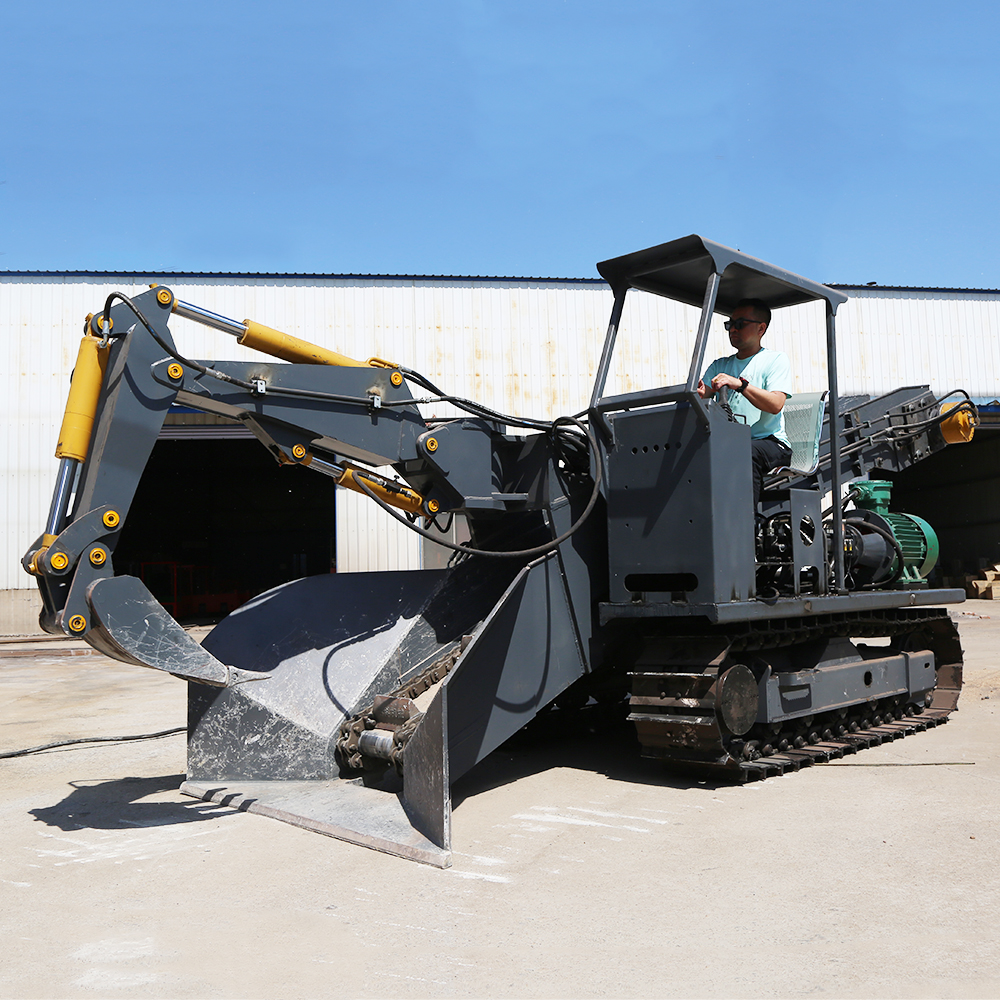

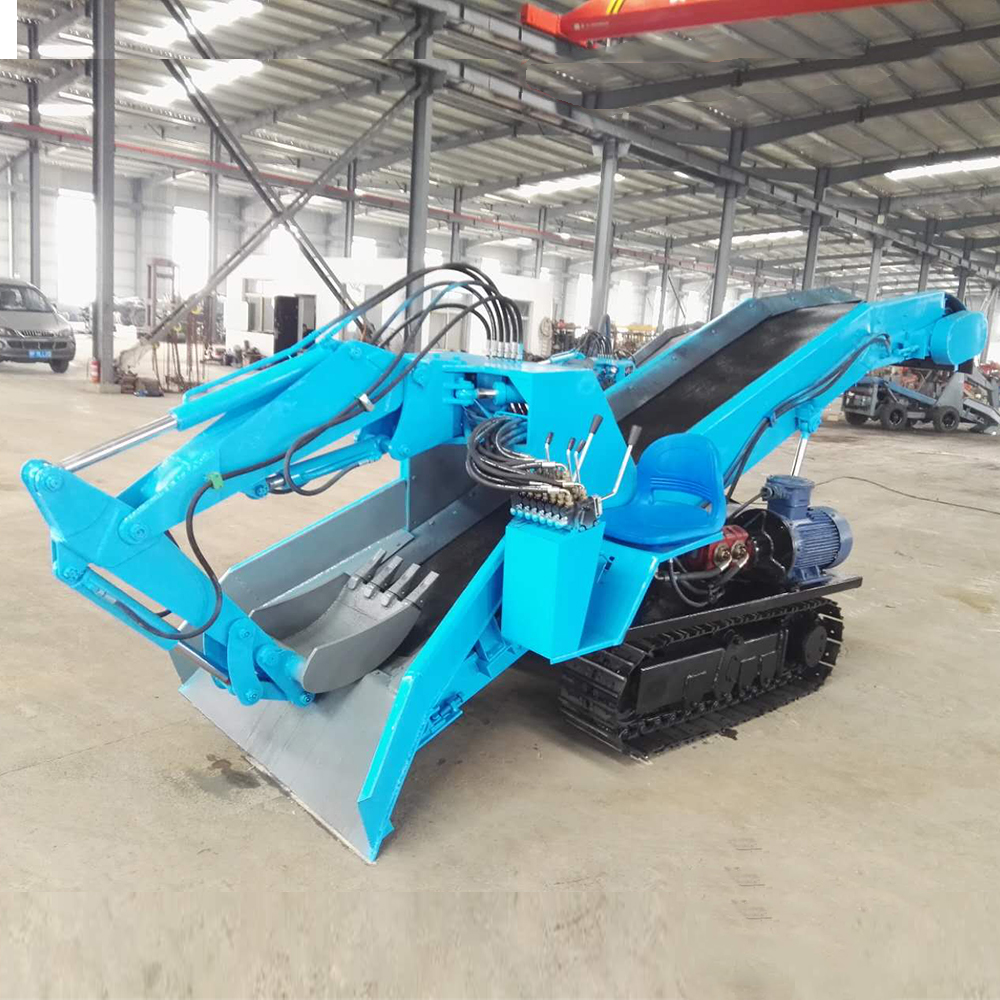

PHOTOS OF
